Remove an SP Internal Interconnect Assembly

a.

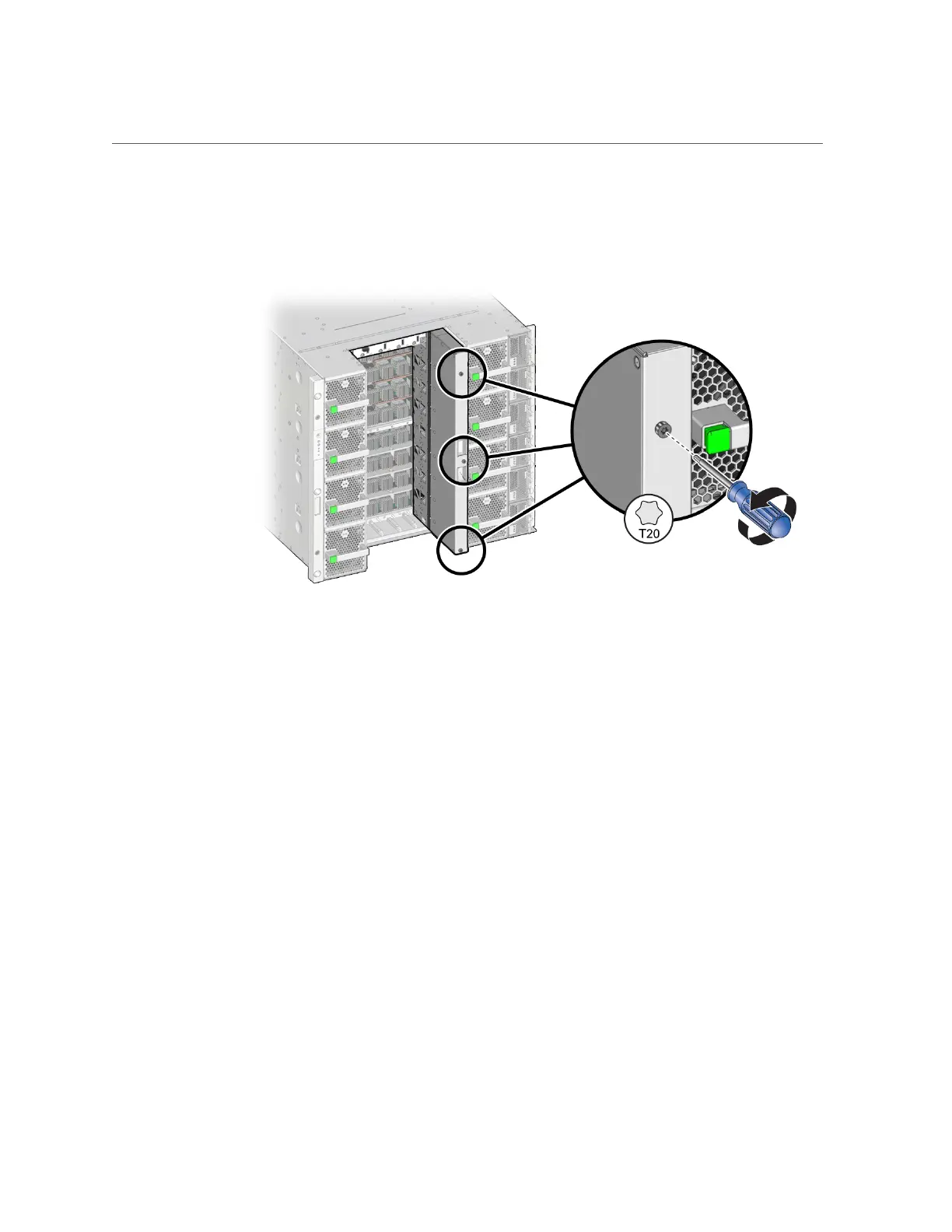

Loosen the captive screws on the SP internal interconnect assembly to free

it from the chassis.

Servicing SP Internal Interconnect Assemblies 287
