Remove an SP Internal Interconnect Assembly

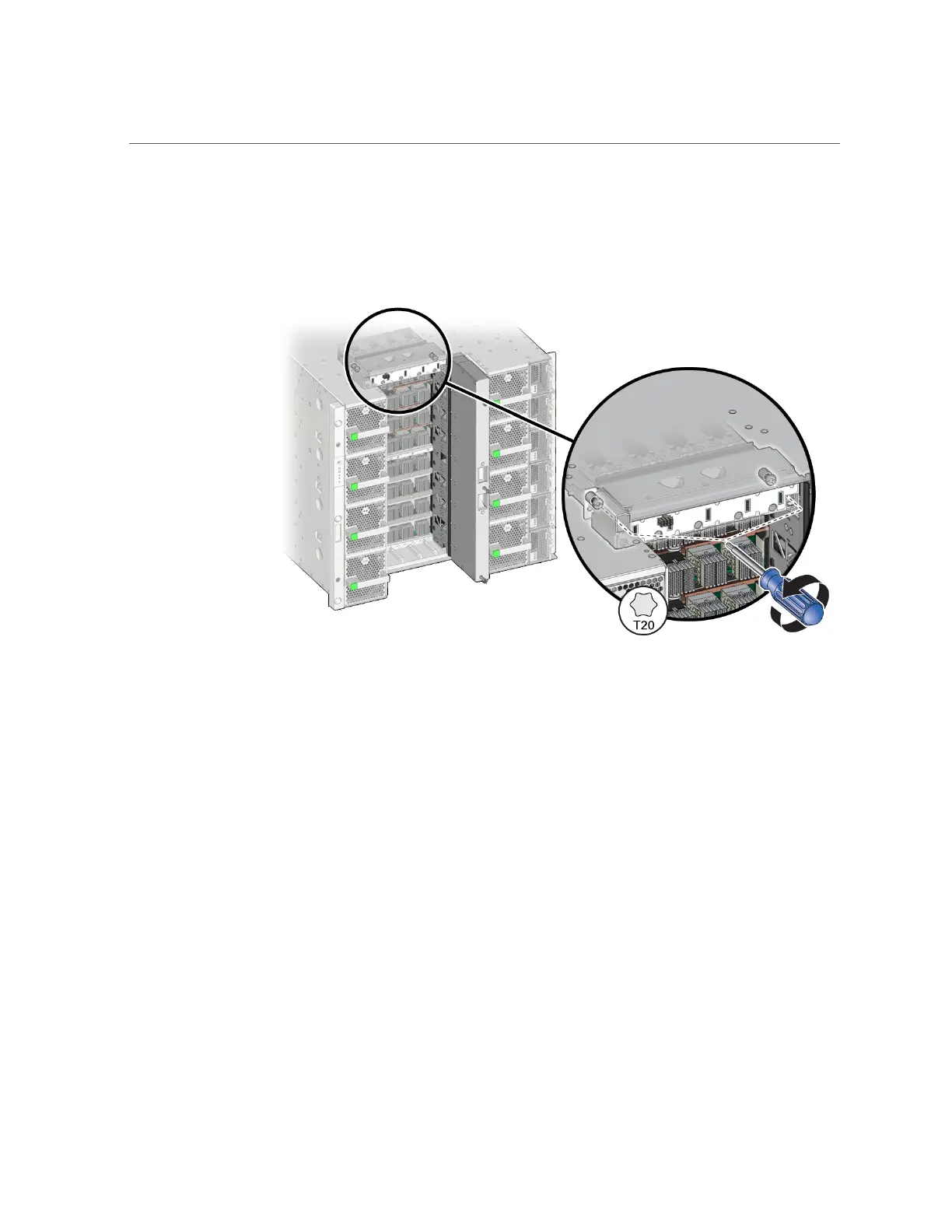

Use a T20 driver to remove the two screws that are located inside the square

holes on the white, horizontal strip that extends to the left of the SP internal

interconnect assembly.

If you are using a screwdriver that has interchangeable bits, the bit needs to be 2 inches

long because the socket on the driver does not fit through the square holes.

288 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
