Remove an SP Internal Interconnect Assembly

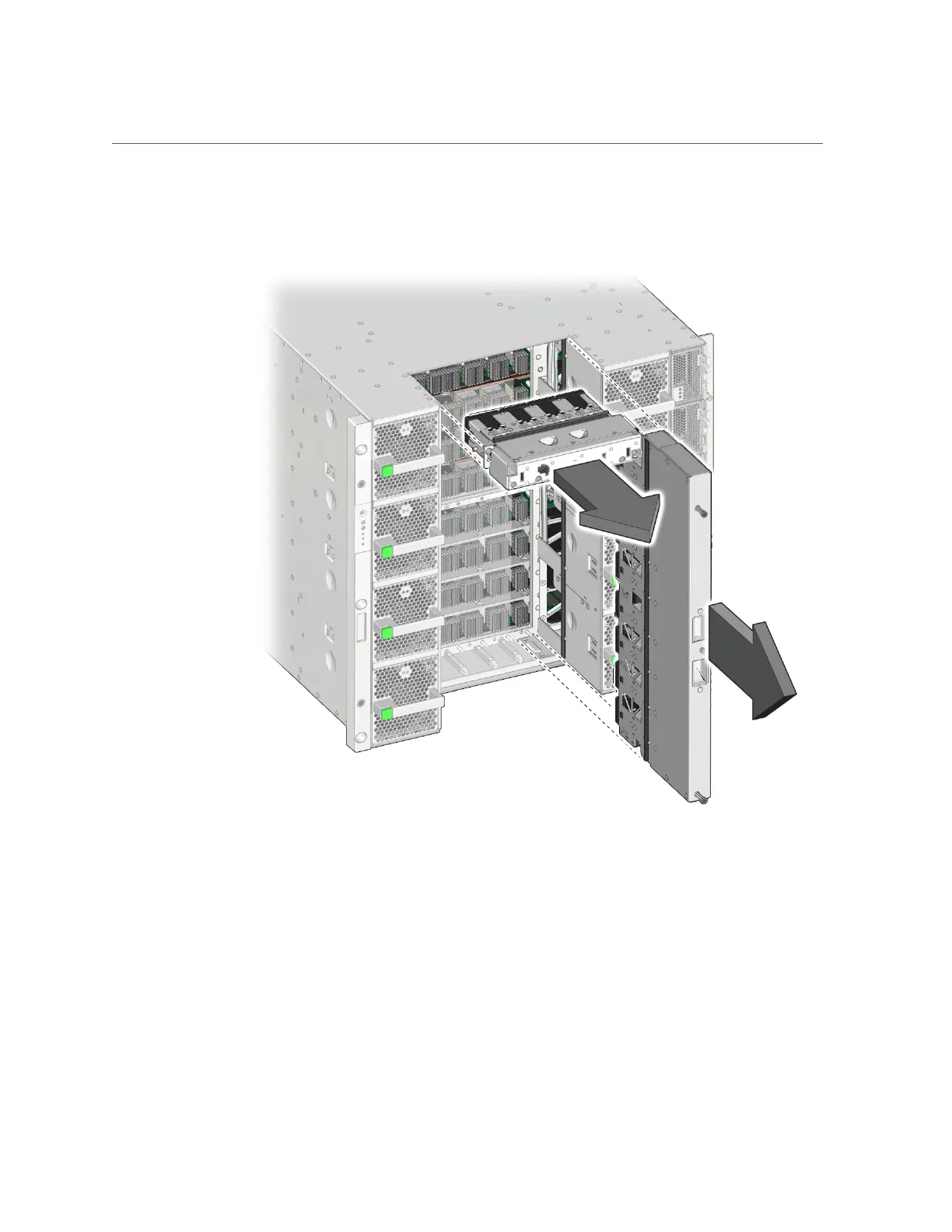

Carefully slide the SP internal interconnect assembly out of the chassis.

Install the new SP internal interconnect assembly.

See “Install an SP Internal Interconnect Assembly” on page 290.

Related Information

■

“Install an SP Internal Interconnect Assembly” on page 290

Servicing SP Internal Interconnect Assemblies 289
