Install an SP Internal Interconnect Assembly
1.
Insert the guide pin shield to avoid damaging the connector pins on the rear of
the SP internal interconnect assembly.
a.

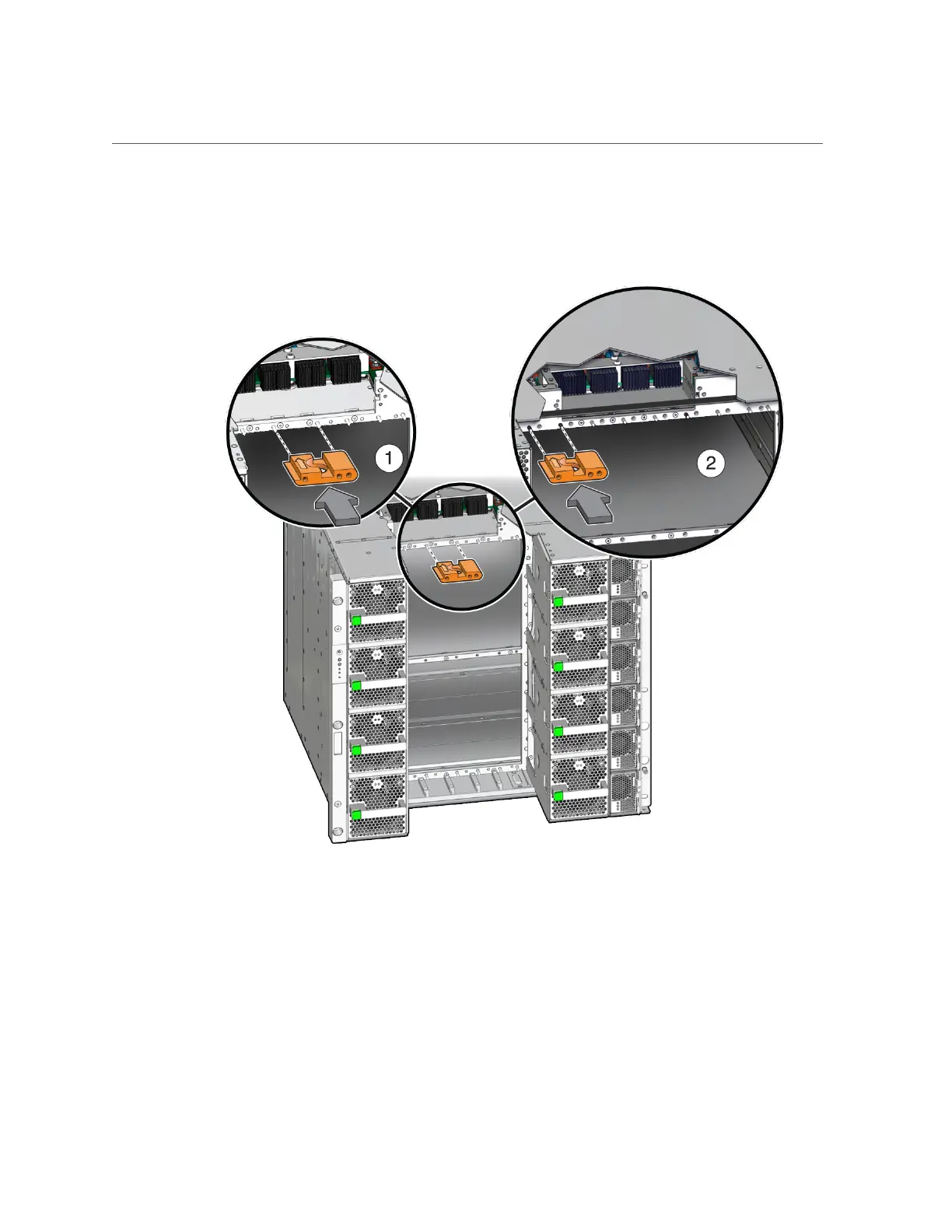

If you are installing an SP internal interconnect assembly in the CMIOU
chassis, place the guide pin shield as shown in panel 1.
b.
If you are installing an SP internal interconnect assembly in the switch
chassis, place the guide pin shield as shown in panel 2.
