Install an SP Internal Interconnect Assembly

From the front of the server, carefully slide the SP internal interconnect

assembly into the chassis.

Caution - The small connector pins on the back of the assembly are susceptible to damage.

Align the assembly in the chassis and install the assembly slowly to avoid bending or otherwise

damaging them.

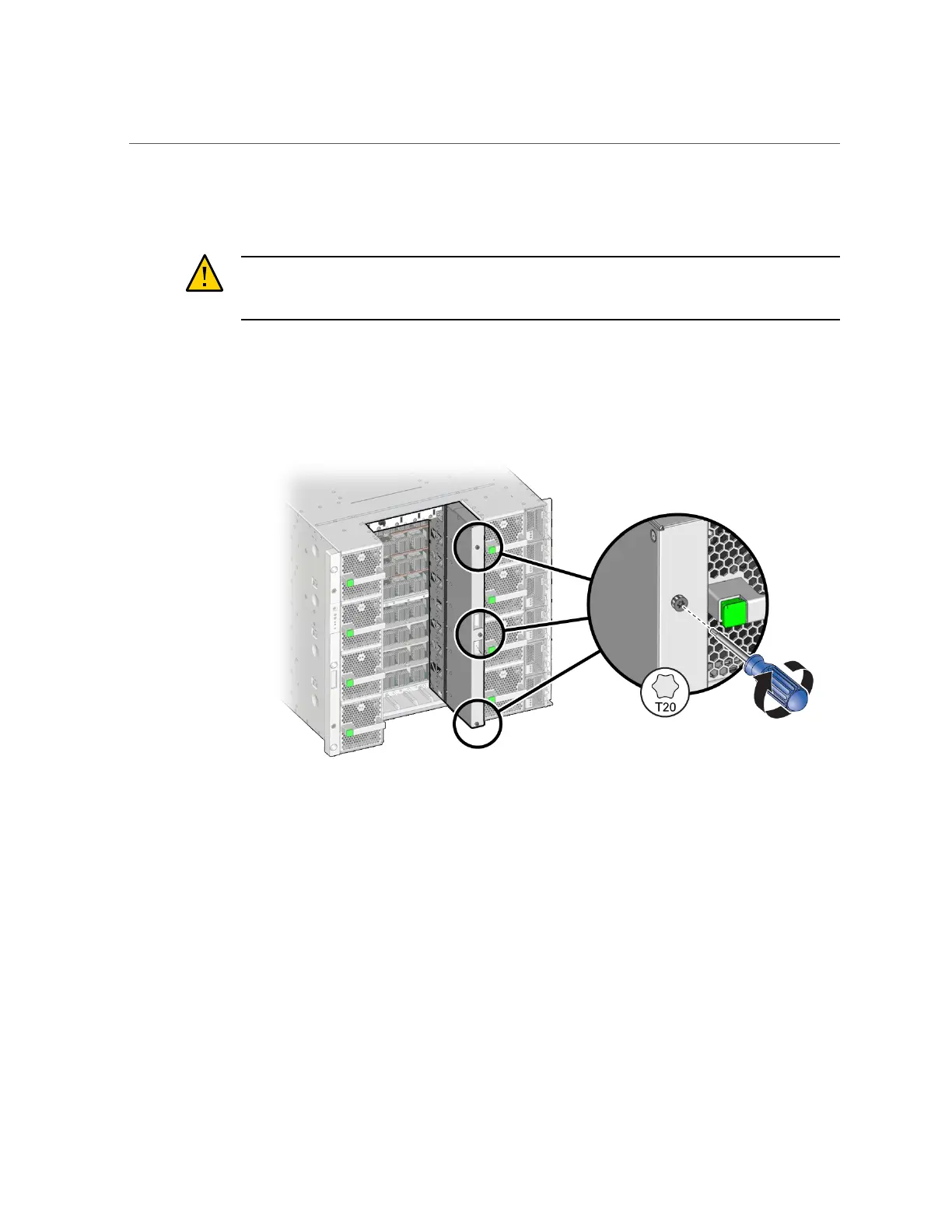

Secure the SP internal interconnect assembly to the chassis.

Tighten the captive screws on the face of the assembly.
