Remove an External Interconnect Assembly
8.

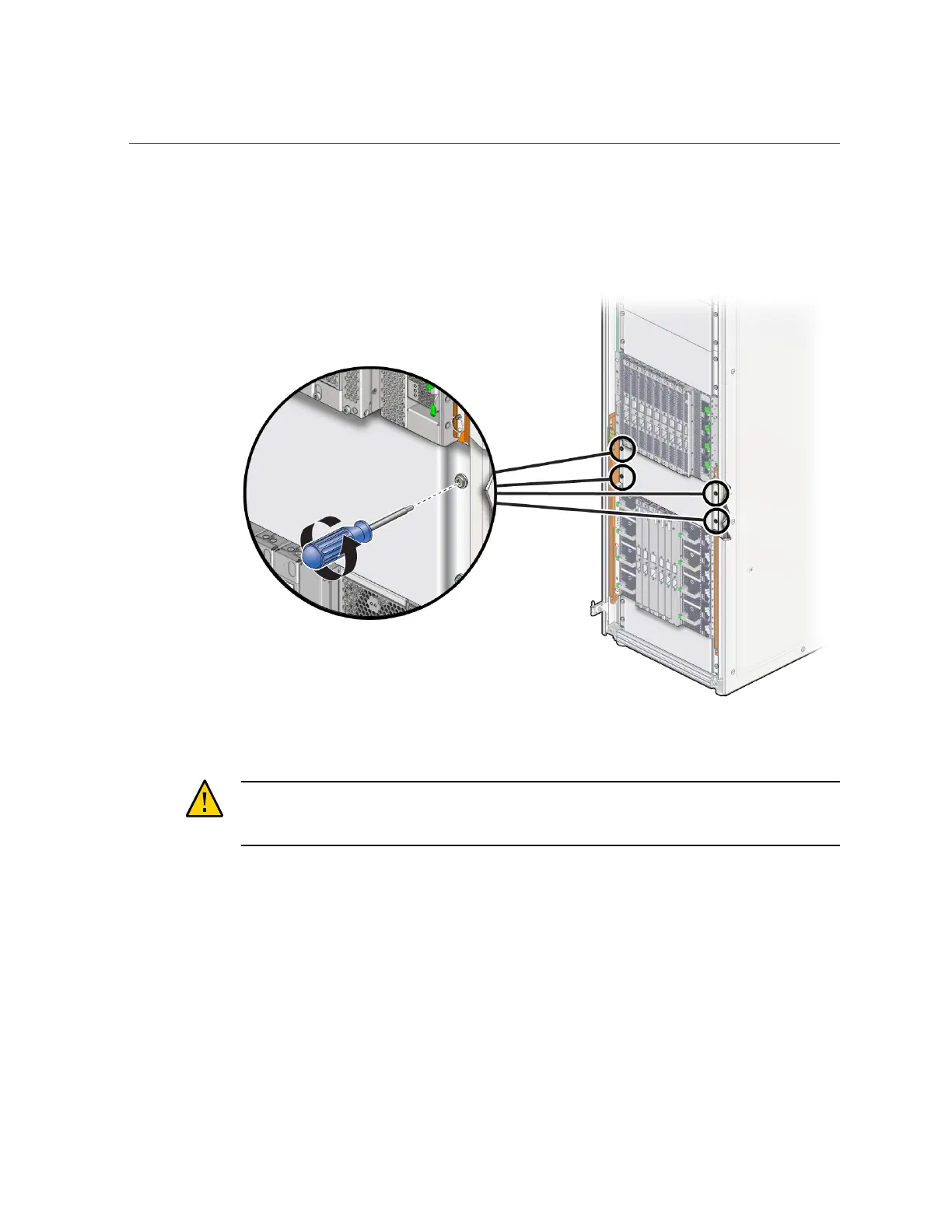

Use a T20 driver to remove the four screws that secure the interconnect cable
cover to the chassis, and remove the cover.
9.
From the front of the server, remove the external interconnect assembly.
Caution - The small connector pins on the back of the assembly are susceptible to damage.
Remove the assembly slowly to avoid bending or otherwise damaging them. In addition, take
care to avoid flexing or twisting these assemblies.
a.
Loosen the captive screws on the assembly.
308 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
