Remove an External Interconnect Assembly

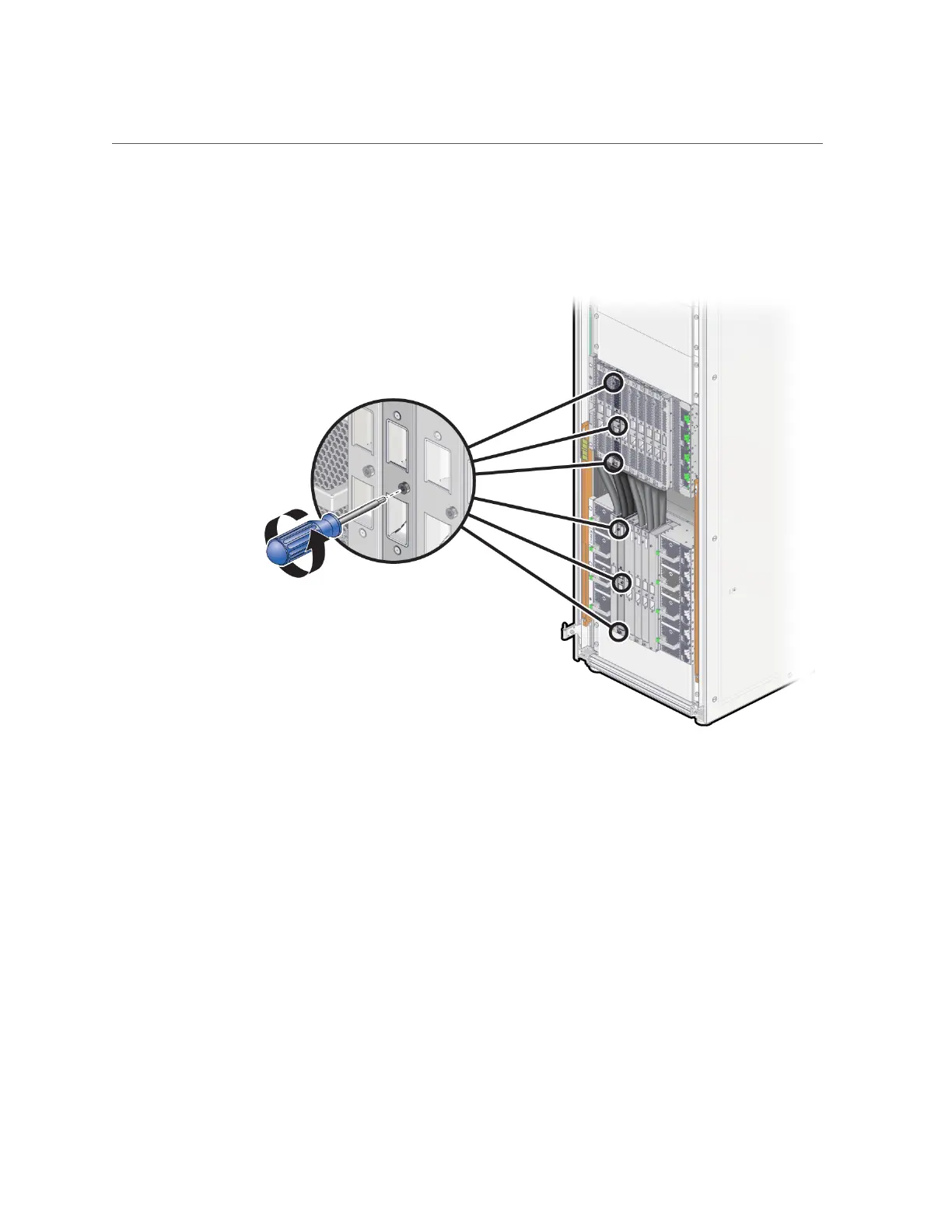

When the spring-loaded screw springs out, press on the upper screw at each end of the

external interconnect to unlatch the assembly from the chassis.

Servicing External Interconnect Assemblies 309
