PKNKN píÉéJÄóJëíÉé=éêçÅÉÇìêÉ=
PKNKNKN píÉé=N=Emçí=éêÉé~ê~íáçå=Ñçê=î~éçìê=Çê~ïF=
1) Ensure that lines are fitted with VCR blanks.; see Fig 3-2.
2) Carry out leak check of inlet and outlet.
To chamber
Heated TEMAH pot pre-
fitted with manual valves.
Single
ALD valve
jacket heated
to 200 °C
Drip tray
Extraction port
1 m
3
/h
Precursor cabinetN
2
purge
Purge
Dose
Bypass
Ar purge
500 sccm
Manual valve
Air driven nupro valve –manual control
Fast high temperature ALD valve
E

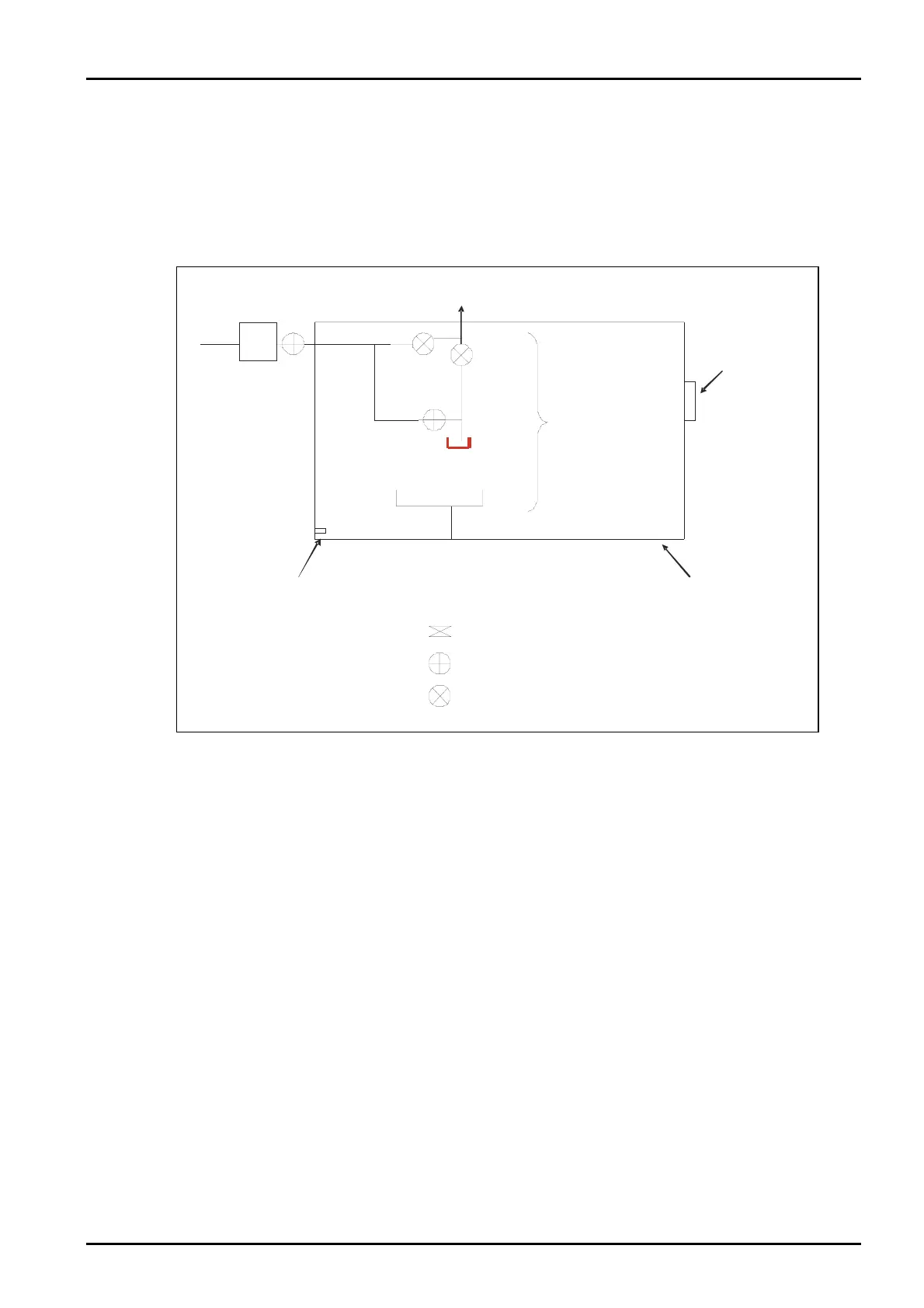

Fig 3-2: Step 1 (Pot preparation for vapour draw)
Precursor Source Pot
