127
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010
4.3.15.1. LSU Skew Adjustment
(1) Open the Front Cover and the Right Cover.
(2) Slide the Process Unit out. (Refer to 2.2.4.)
Caution:
Exercise caution not to scratch the surface of the
OPC Drum (Green), and not to touch it with bare
hands.
(3) Remove the Front Left Cover. (Refer to 2.2.10.)

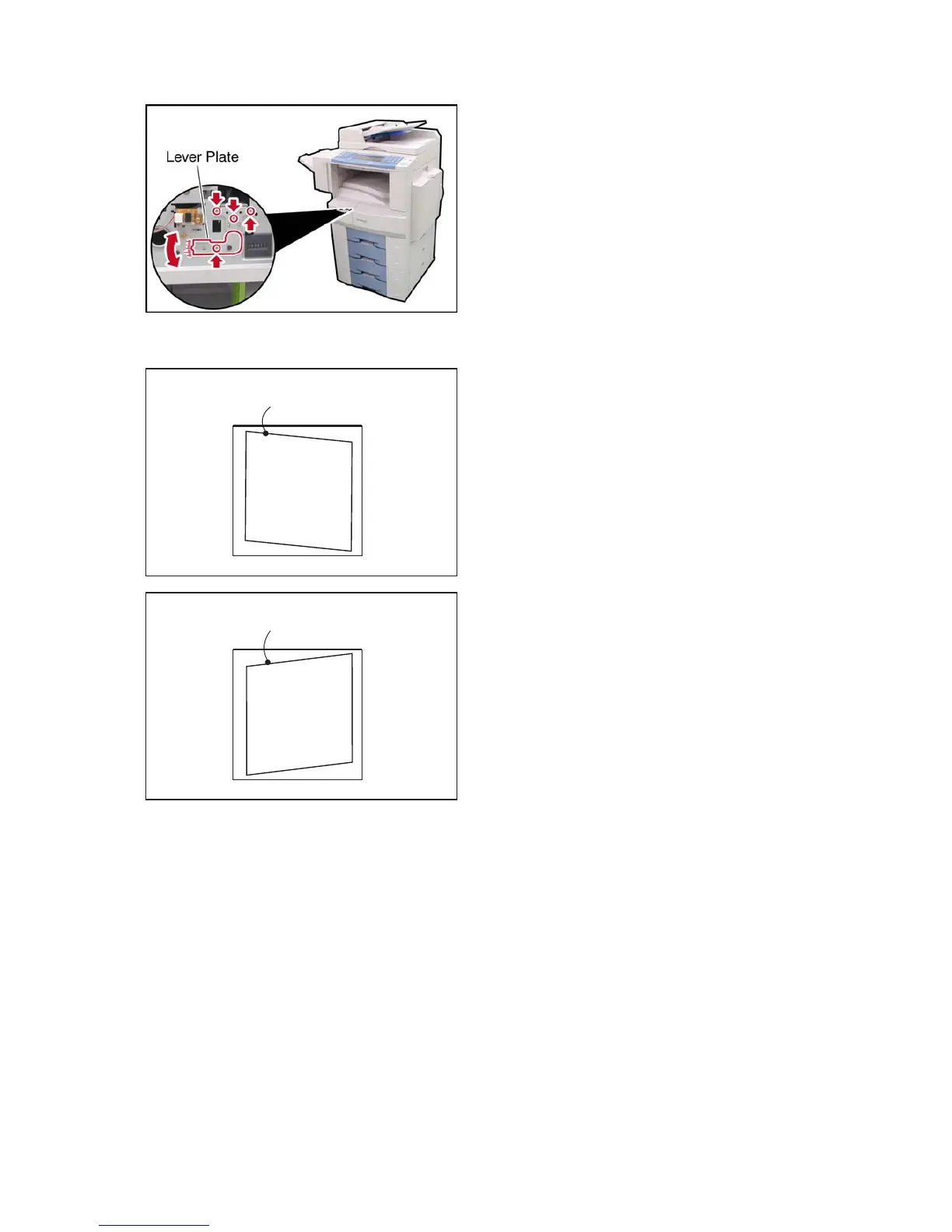

(4) Loosen 4 Red Screws.
Adjust the Lever Plate downwards and recheck the
Document Skewing. Readjust as needed.
One scale adjusts the skewed image by
approximately 0.01 mm.
Adjust the Lever Plate upwards and recheck the
Document Skewing. Readjust as needed.
Document Leading Edge
< Example of Printed Image >
A
Document Leading Edge
< Example of Printed Image >
A
To Next Page
