8.3. Installing the Printer Controller Module for GDI-IPX/SPX (DA-GC601)
8.3.1. Contents
Note:
1.The part number may differ depending on the Destination.
2. Refer to the Parts List in the Parts Manual.
8.3.2. Installation
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
Qty. Description Part No. Remarks
1 Hardware Key ----- GDI KEY
1 Installation Instructions DZSM000751 This document

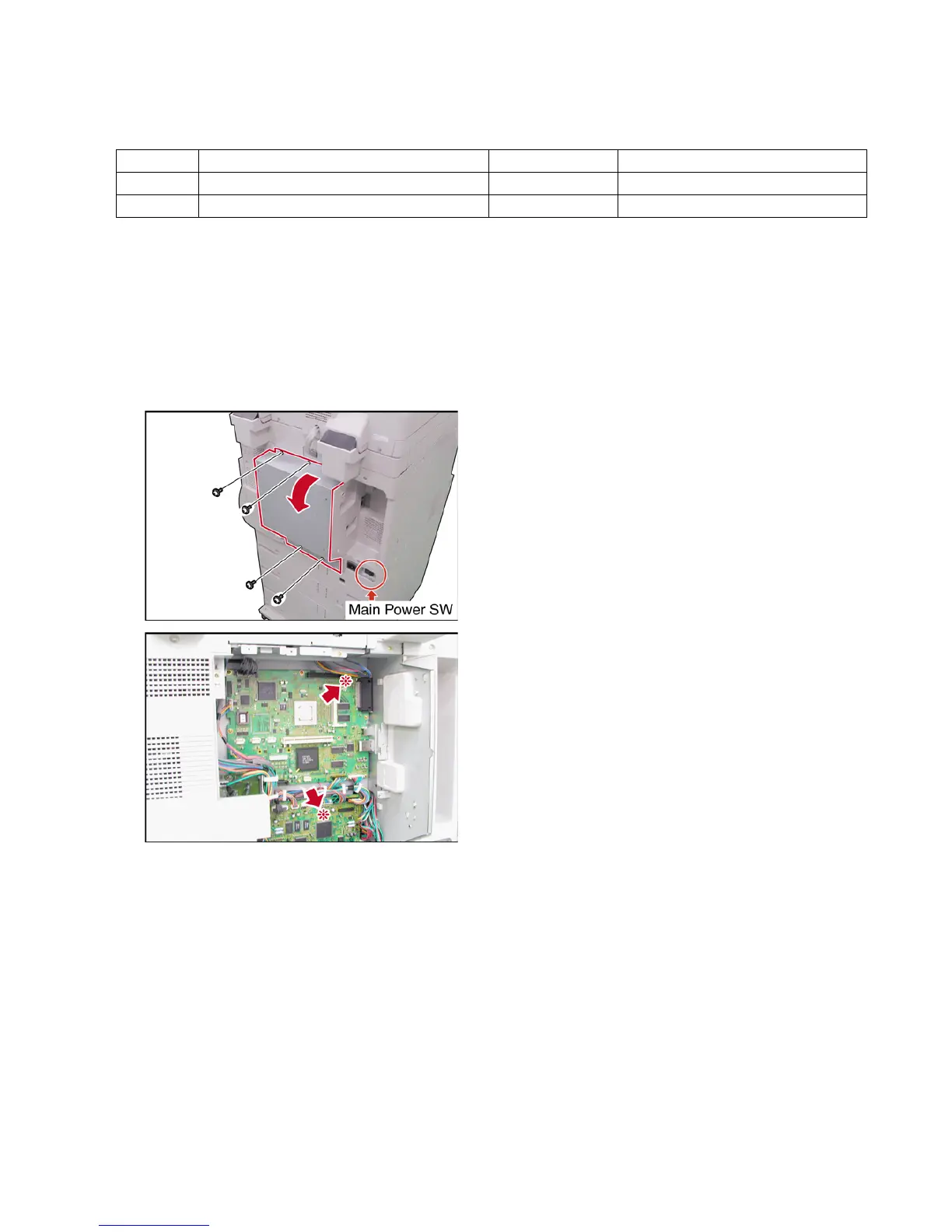

(1) Remove 4 Silver Screws.
(2) Open the Rear Cover.
Caution:
If the Red LEDs on the SC and SPC PC Boards
are ON, the Power is still ON.
Please read these Installation Instructions once
again.
To Next Page
