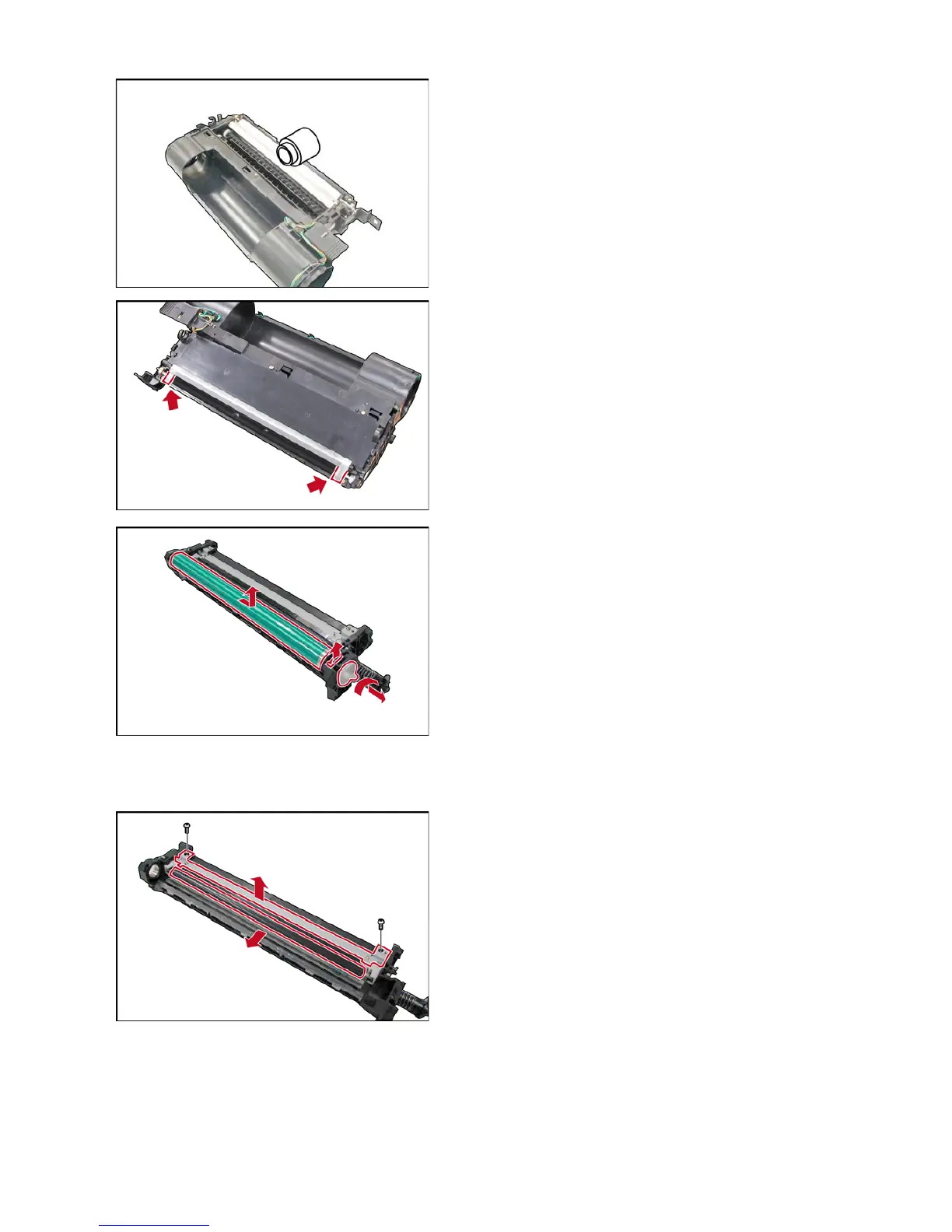

(26) Shake the Developer Bottle thoroughly (approx.
30 seconds).
(27) Pour the appropriate developer evenly into the
developer unit. Make sure to empty the bottle.
(28) Close the Developer Cover.
Note:
When reinstalling the Developer Cover, ensure
that 2 Magnet Roller Sheets are outside as
illustrated.
<Removing the Old OPC Drum>
(29) Remove the OPC Drum Shaft Holder
Assembly.
(30) Lift the OPC Drum, holding the right side where
the OPC Drum Shaft Holder Assembly was
installed.
Note:
Do not touch the surface of the OPC Drum with
bare hands when removing or reinstalling it.
Grease from fingerprints will affect copy quality.
When installing a new OPC Drum, clean the Bias
Charge Roller with a soft dry cloth.
(31) Remove the Bias Charge Roller (725).
(32) Remove 2 Screws (20).
