Panasonic DP-2330

59
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

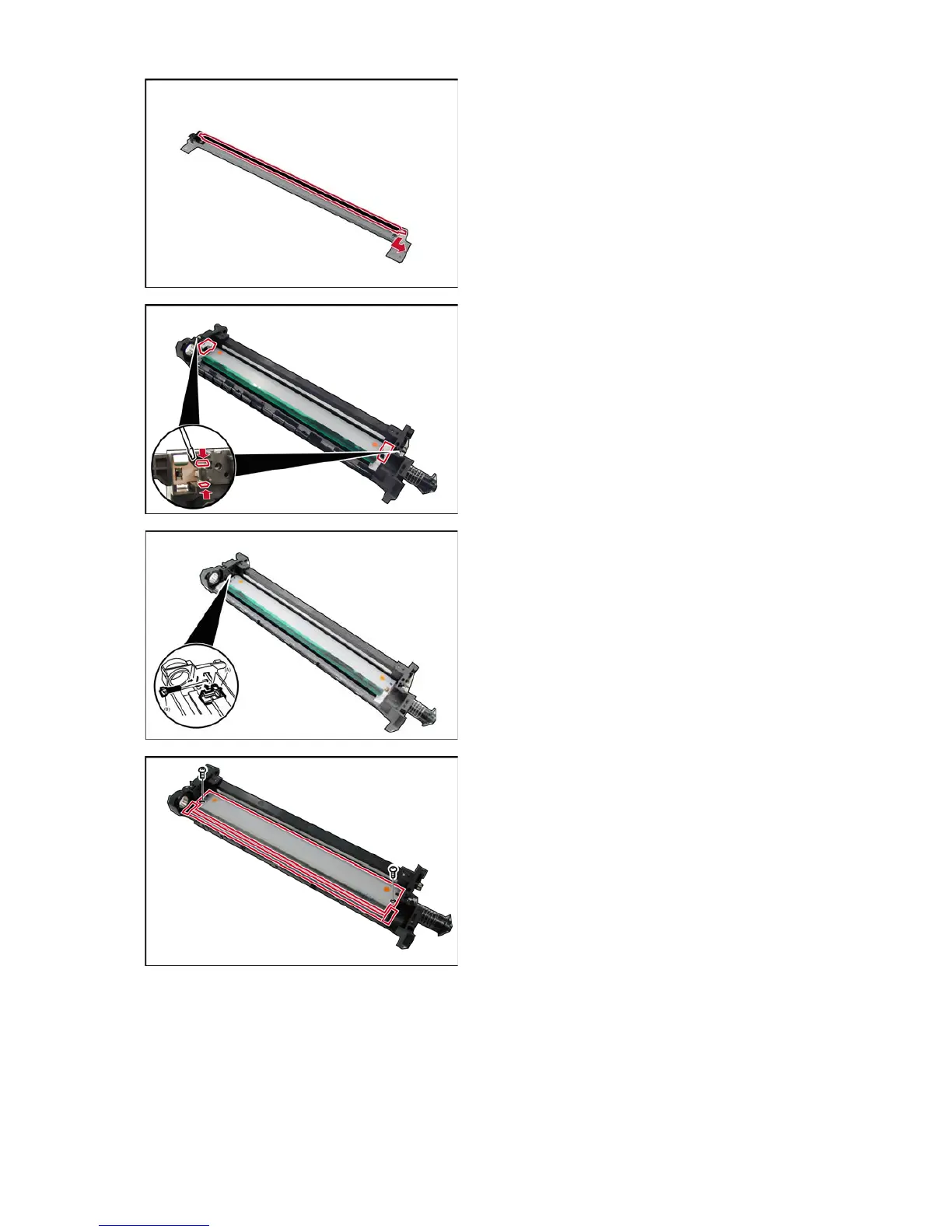

(33) Remove the Cleaning Roller (706).
(34) Remove 2 Bias Charge Roller Holder (728)
Assemblies.
Note:
When reinstalling the Bias Charge Roller Holder
Assembly on the rear side, install the Bias Charge
Roller Holder (728) first and then the Bias Charge
Roller Bushing (726) with the Bushing Coil Spring
(727) as illustrated.
(35) Remove 2 Screws (23).
(36) Remove the Cleaning Blade (704).
(37) Remove the Scoop Sheet (710).
