8.20. Installing the Deluxe Stand (DA-DA310 / DA320) for USA Only
8.20.1. Contents
8.20.2. Installation
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
Note:
The following illustrations depict the Installation of Deluxe Stand (DA-DA310).

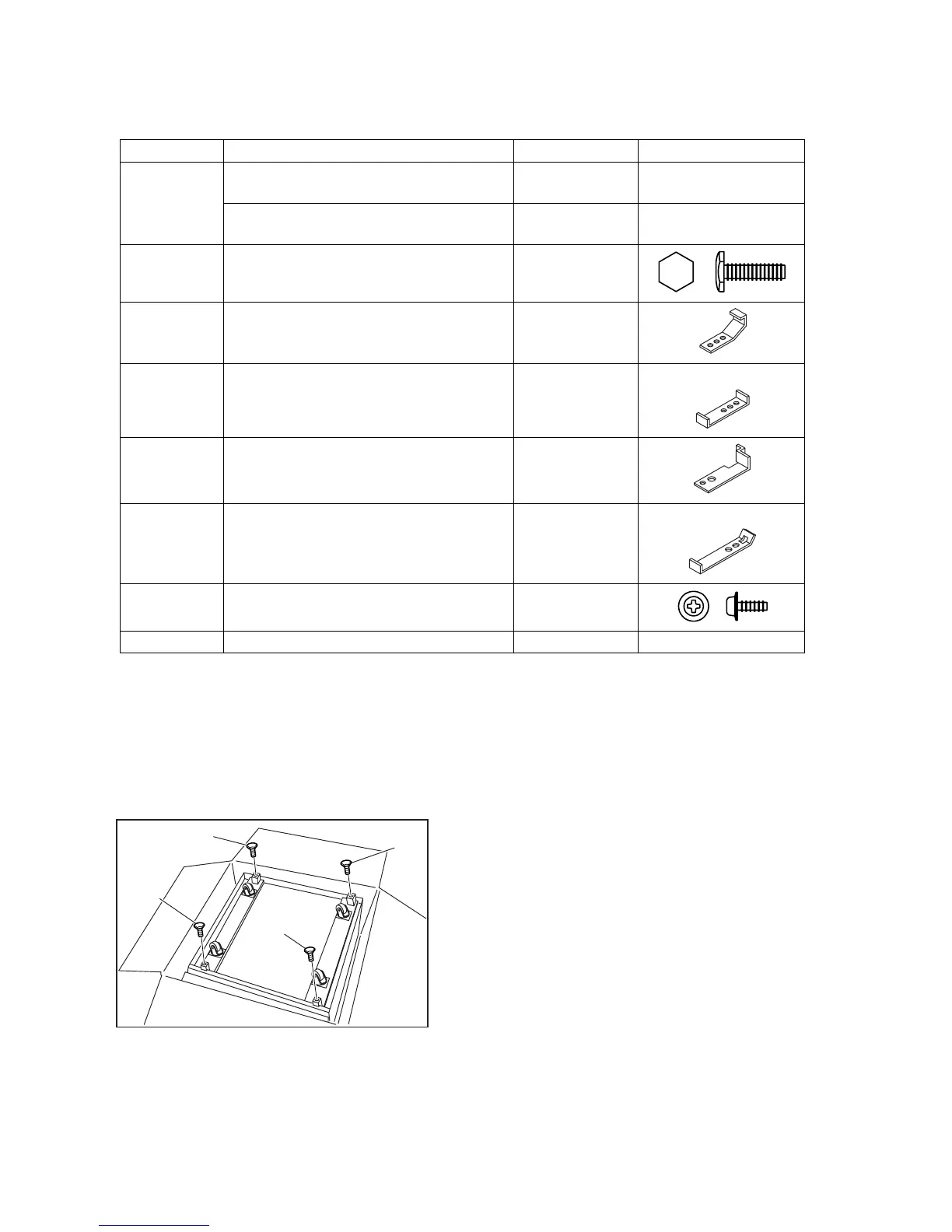

Qty. Description Part No. Remarks
1
Deluxe Stand (DA-DA310 = High)
-----
2-Paper Trays
Configuration
Deluxe Stand (DA-DA320 = Low)
-----
3-Paper Trays
Configuration
4
Leveler GP5084
1 Joint Bracket A (Right Front)
GH7878
1 Joint Bracket B (Right Rear)
GH7879
Shorter piece
1 Joint Bracket D (Left Front)
GH7880
1 Joint Bracket E (Left Rear)
GH7881
Longer piece
4 Screw DZPD000005
1 Installation Instruction DZSM000724 This document
(1) Open the top of the carton
(2) Install 4 Levelers into each corner leg.
(3) Turn the Stand right side up while its still in the
carton and then lift and remove the carton.
(2)
(2)
(2)
(2)
