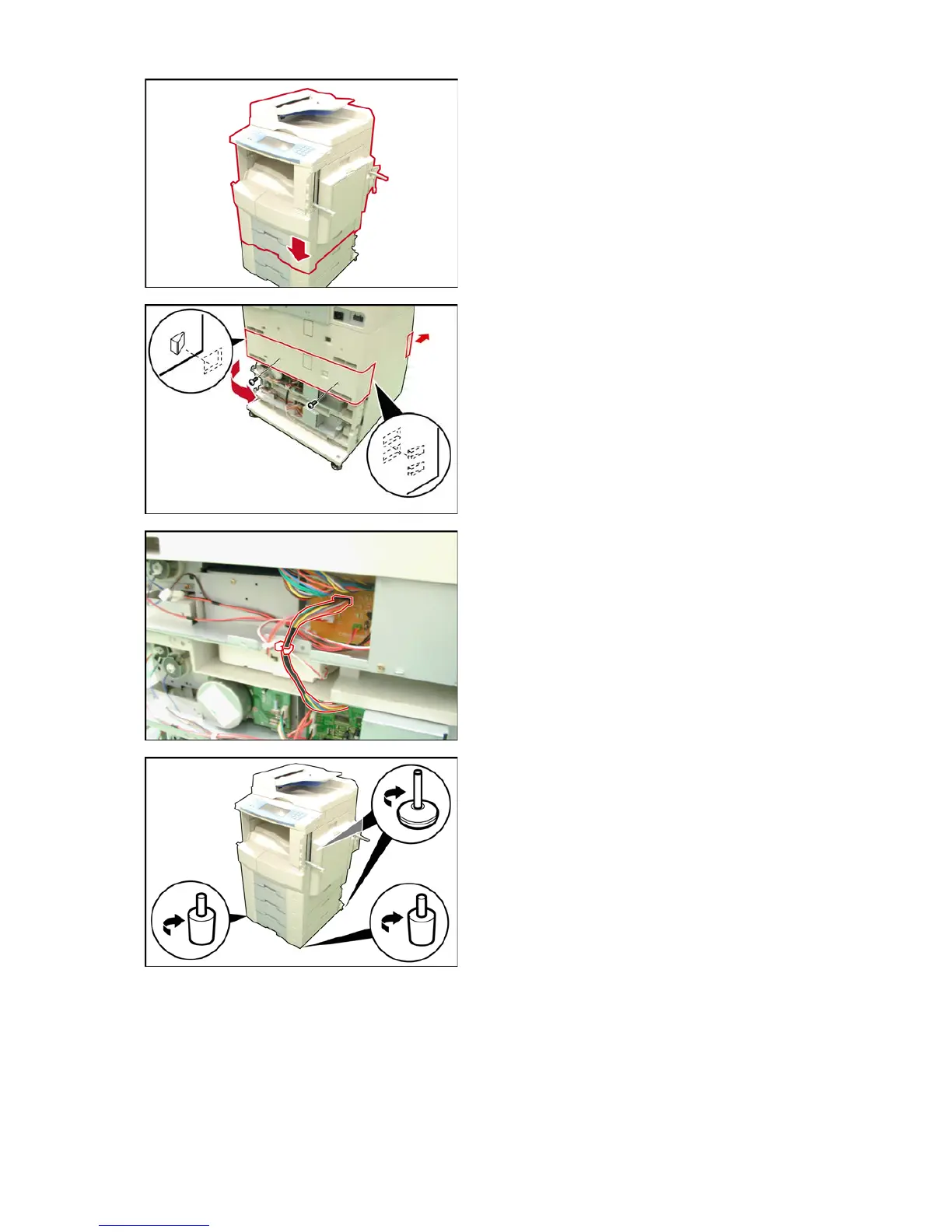

(15) Place the machine on top of the 3rd Paper Tray
Unit as illustrated.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries,
use the appropriate number of personnel and the
proper equipment to lift or move the machine.
(16) Remove 2 Silver Screws.
(17) Remove the Lower Rear Cover.
(18) Slide the 2nd Paper Tray out of the unit.
(19) Install the 4 Brackets, see Step (11).
(20) Secure the 4 Brackets with 8 Screws.
(21) Connect the Harness of the 3rd Paper Tray Unit
to CN772 on the CST2 PC Board of the 2nd
Paper Tray Unit.
Note:
Ensure not to insert the connector upside down,
as it may damage the machine's SPC or CST PC
board.
(22) Place the Harness into the clamp.
(23) Reinstall the Lower Rear Covers and the Paper
Trays.
(24) Level the machine with the 4 Adjusters as
illustrated.
(25) Attach the Size Label(s) onto the 3rd/4th Paper
Tray(s).
