8.12. Installing the Hard Disk Drive Unit (DA-HD30)
8.12.1. Contents
Note:
1.The part number may differ depending on the Destination.
2. Refer to the Parts List in the Parts Manual.
8.12.2. Installation
1. Before installing the Hard Disk Drive Unit, make sure the optional Sorting Image Memory is
installed in the memory socket on the SC PC Board first. At least an additional 16 MB
(DA-SM16B) of Sorting Image Memory is required.
Refer to the Installation Instruction of the Sorting Image Memory (DA-SM16B/64B/28B).
2. Install the Hard Disk Drive Unit by following the steps below.
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.

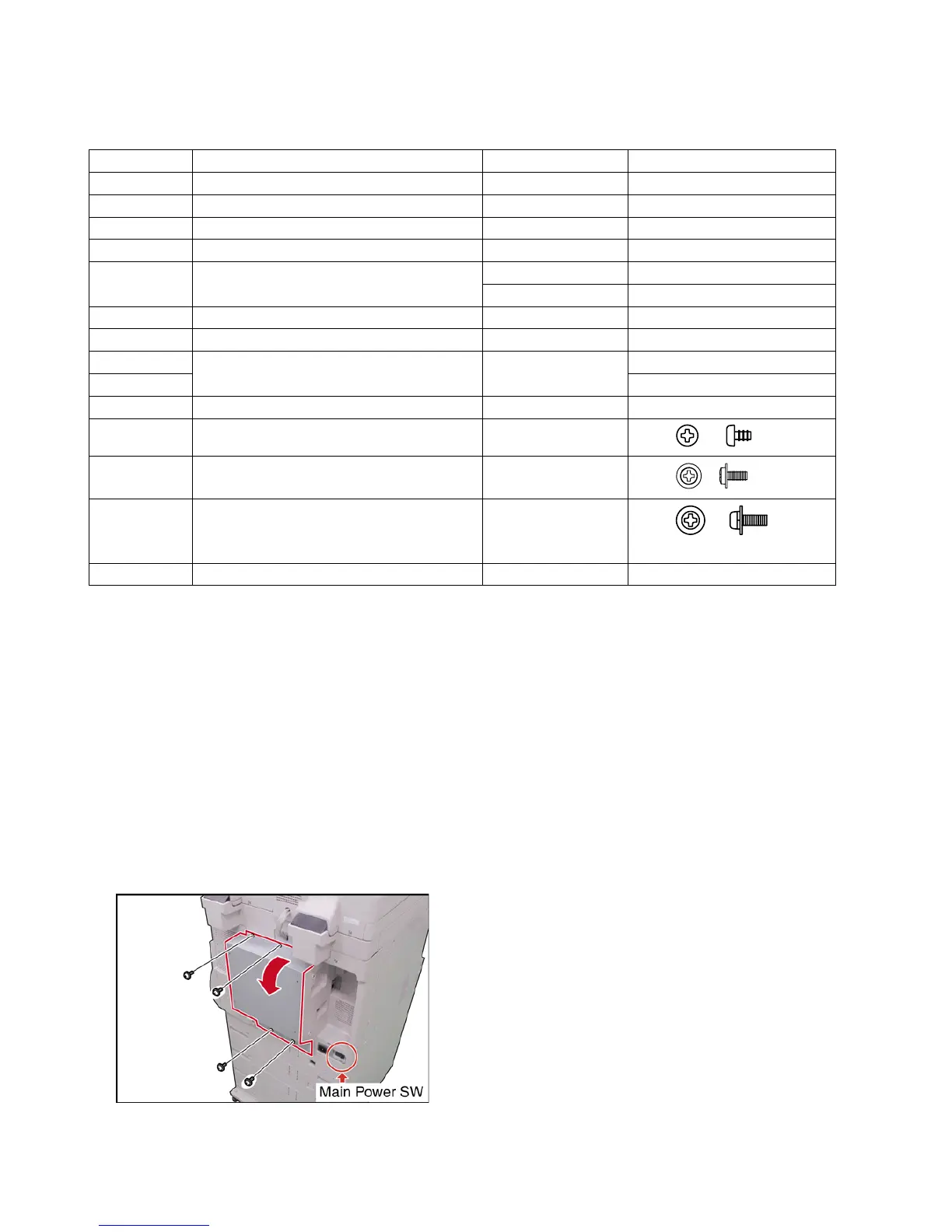

Qty. Description Part No. Remarks
1 Hard Disk Drive (HDD) DZHL000002
1 DC PCB DZEC102176
1 HDD Bracket DZHP008927
1 HDD2 Harness DZFP001467 Power Supply Cable
1 HD Harness (Flat Cable)
DZFP001499 For USA and Canada
DZFP001526 For Other Destinations
1 DC12 Harness DZFP001468 3 Connectors
4
Harness Clamp (Small) DZJK000067
2
Harness Clamp (Medium) DZJK000068
For USA and Canada
1 For Other Destinations
2 Harness Clamp (Metal) DZJK000077 Except USA and Canada
4 Silver Screw See Note
4 Screw See Note
2
Screw (Long) See Note
Except USA and Canada
1 Installation Instructions DZSM000696 This document
(1) Remove 4 Silver Screws.
(2) Open the Rear Cover.
