Panasonic DP-2330

363
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

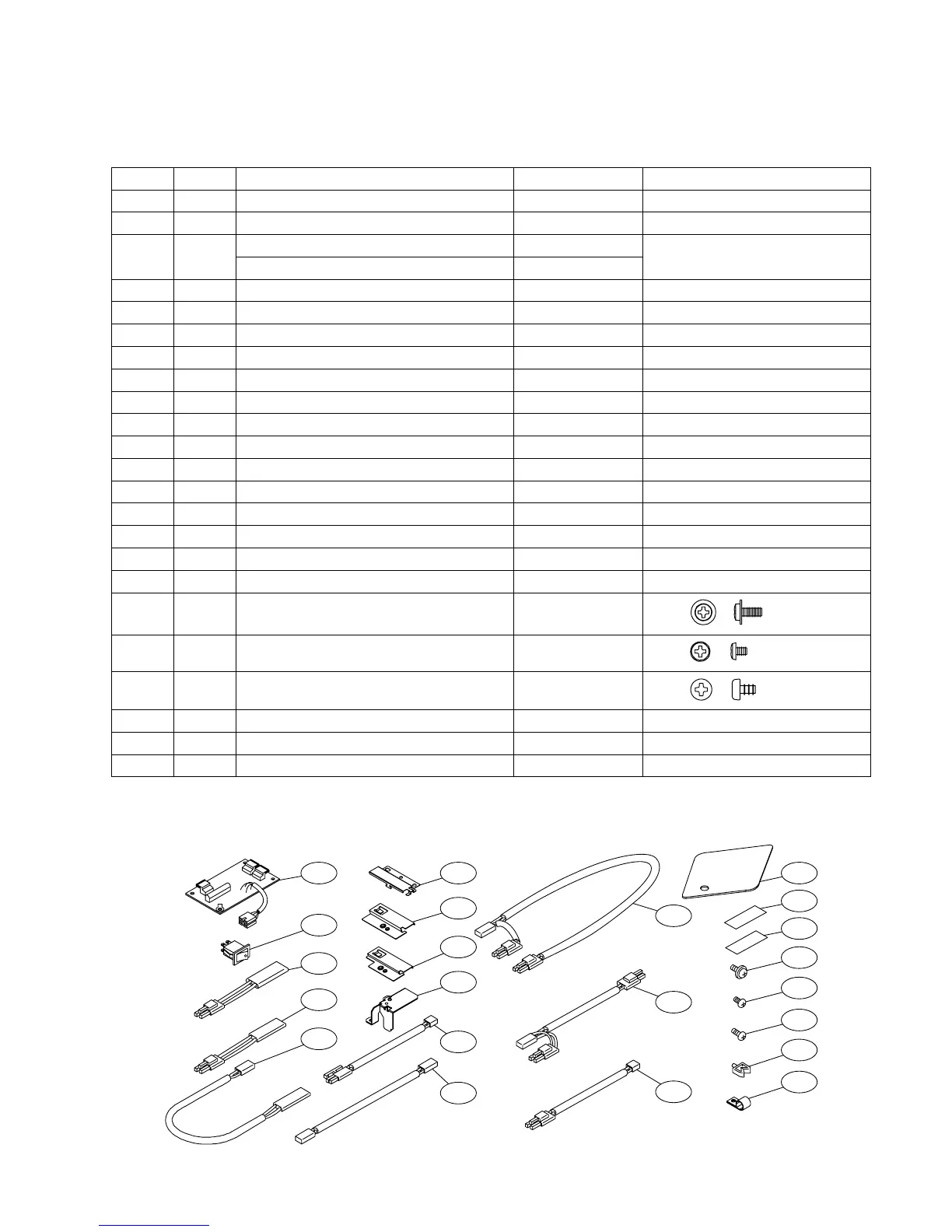

8.31. Installing the Dehumidifier Heater Kit (DZTQ000048)
8.31.1. Contents
DZTQ000048
Note:
1. The part number may differ depending on the Destination.
2. Refer to the Parts List in the Parts Manual.
No. Qty. Description Part No. Remarks
1 1 PC Board, RLB DZEC102887
2 1 Switch, Power DZCC000006
31
Heater FFPCP0034
Assembled
Sheet, Heater DZHD000036
4 1 Heater FFPCP0035
5 1 Thermistor DZFR000013
6 1 Bracket, Heater FFPKD07791
7 1 Bracket 2, Heater DZJC000376
8 1 Bracket, Dehumidifier DZJC000287
9 1 Bracket, EMI DZJA001351
10 1 Harness, RLB DZFP001469
11 2 Harness 3, PTC-AC DZFP001283
12 1 Harness, HT1 DZFP001415
13 1 Harness, HT3 DZFP001416
14 1 Harness, HT4 DZFP001538
15 1 Sheet, Protection DZJM000511
16 1 Label, Heater DZNK004998
17 1 Label, Power DZNK004904
18 3 Screw XTW3+6LFC
19 1 Screw XTB3+4F
20 5 Screw XTB3+6J
21 3 Clamp, Harness DZJK000005
22 1 Clamp, Harness DZJK000077
- 1 Installation Instructions DZSM000734 This document
1 6 15
16
17
18
19
20
21
22
12
13
14
7
8
9
10
11
2
3
4
5
