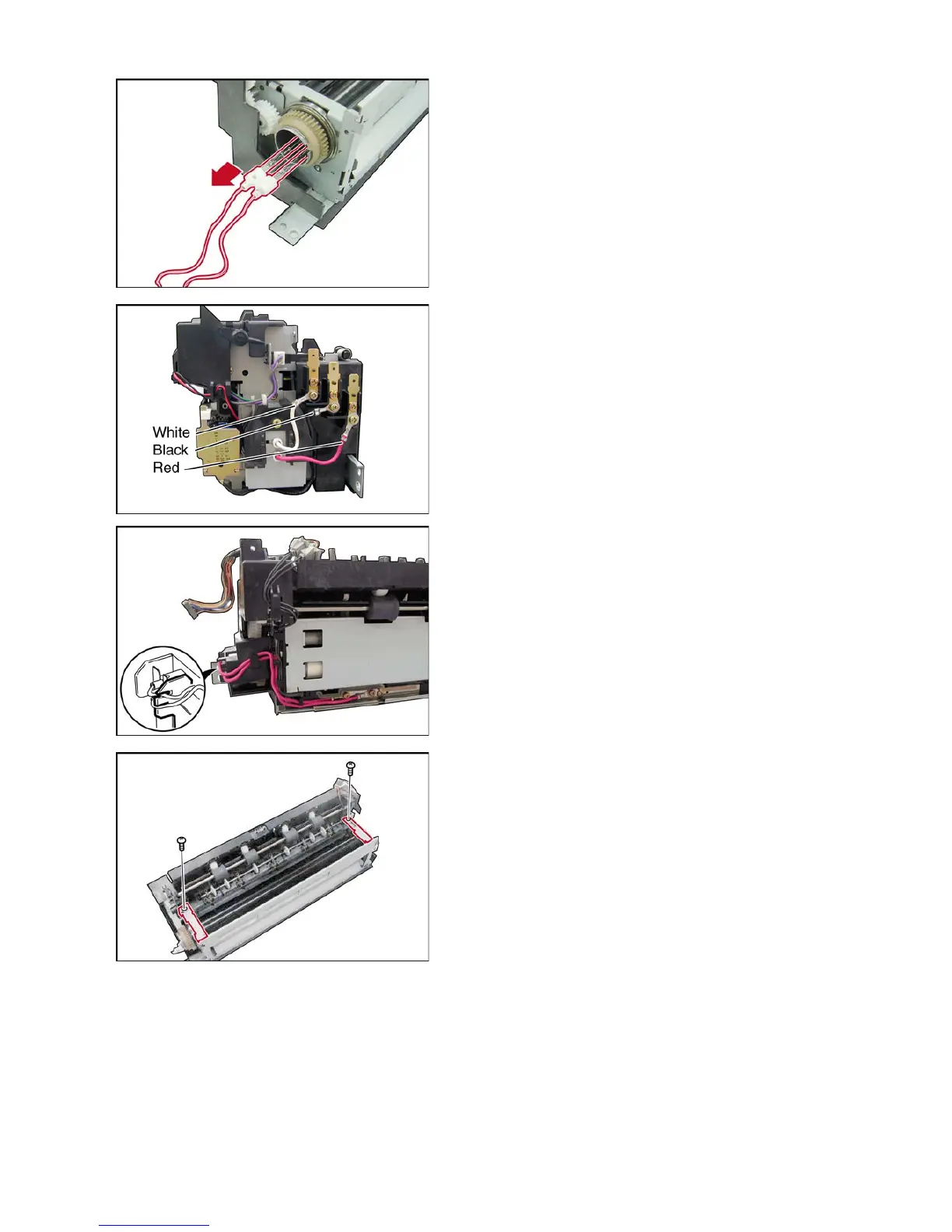

(39) Remove 2 Fuser Lamps (1043 and 1044).
Note:
Make sure to check the wattage of each Fuser
Lamp when replacing.
<Fuser Lamps Handling Precautions>
Note:
1. When reinstalling, route the Harnesses along the
hooks as illustrated.
2. Be sure to install the longer Harness to the Gear
side and the shorter Harness to the other side.
3. Make sure that the 600W Fuser Lamp (White
Harness) is plugged into the upper left slot and
the 450W Fuser Lamp (Red Harness) is plugged
into the lower right slot.
4. Route the Harnesses (White, Black and Red)
along the 3 hooks as illustrated.
5. Do not touch the glass portion of the Fuser Lamp
with bare hands. Grease from the fingerprints will
shorten its life cycle, use a soft cloth, saturated
with isopropyl alcohol to clean fingerprints.
6. Use care when handling the Fuser Lamps to
avoid breakage.
(40) Remove 2 Screws (21).
(41) Remove the Front and Rear Roller Holders
(1056 and 1057).
