2.2.7. Right Cover

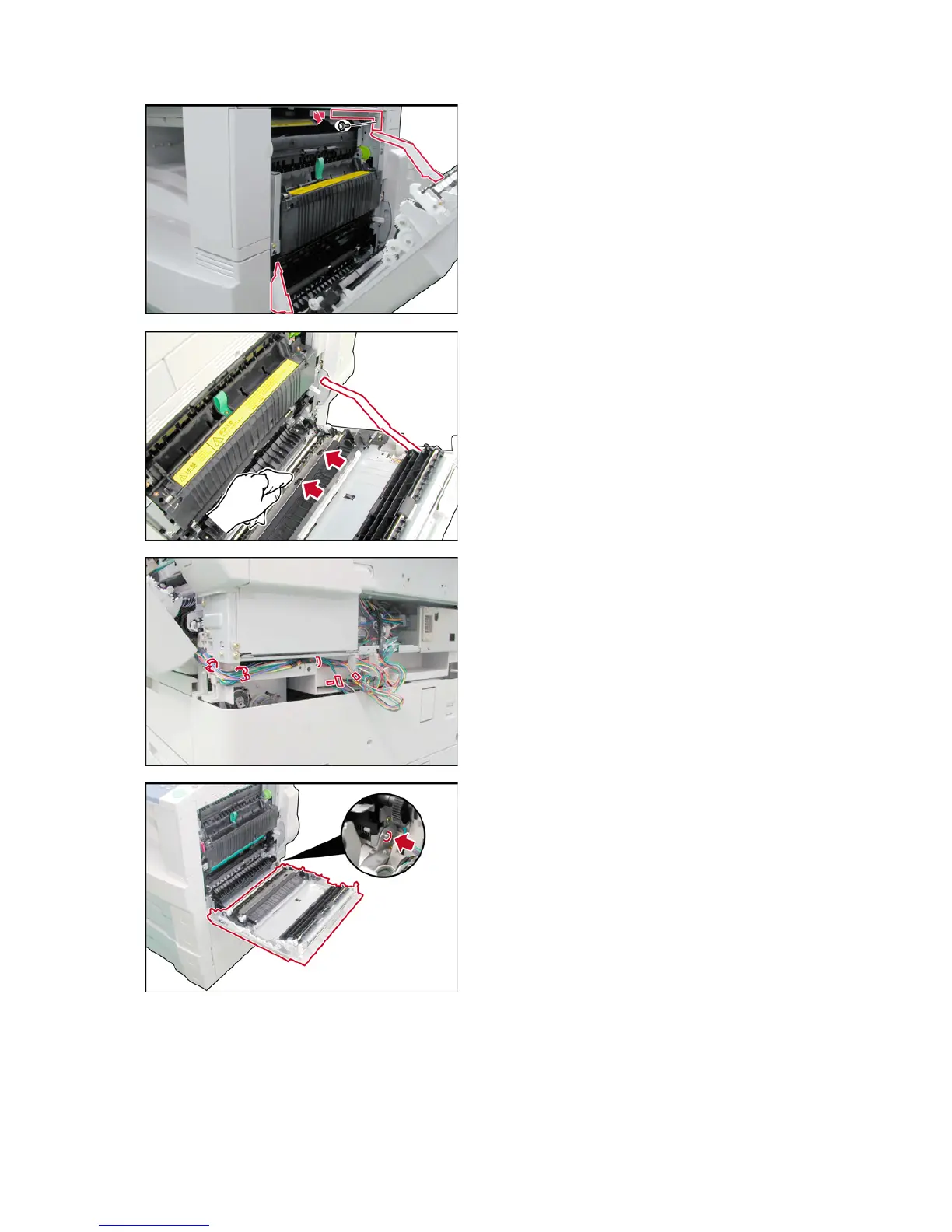

(1) Open the Right Cover (1201).
(2) Remove 1 Screw (6P).
(3) Remove the Harness Cover (1525).
(4) Unlock the Angled Rear Arm (1218) and
the Front Arm (1217).
(5) Hook the Angled Rear Arm (1218) into the
lower hook hole.
<Cleaning the CDS PC Board>
Clean the Sensor on the CDS PC Board with a dry
soft cloth.
(6) Remove the Lower Rear Cover (506).
(Refer to 2.2.6.)
(7) Disconnect 3 Connectors.
(8) Release the Harnesses from 3 Harness
Clamps.
(9) Unlock the Angled Rear Arm (1218).
(10) Push the Fulcrum Pin (1215) and then remove
the Right Cover (1201).
Note:
Please remove the Right Cover completely to
prevent damage that could cause duplex skewing
and jamming.
