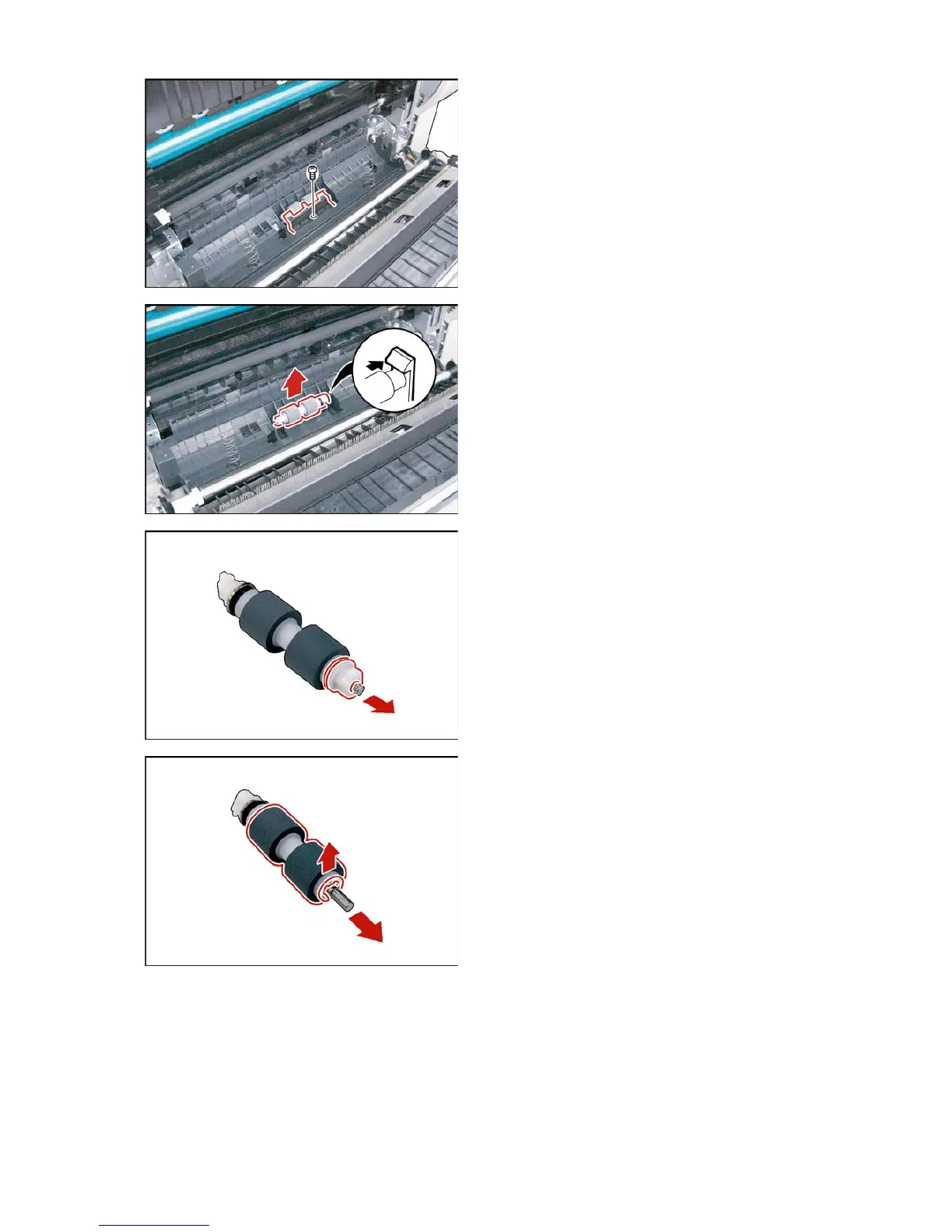

(10) Remove 1 Screw (X6).
(11) Remove the Reverse Roller Guide (1294).
(12) Remove the Reverse Roller (1291) Assembly.
(13) Remove the Bushing (1286).
(14) Remove the Washer (1288).
(15) Remove the E-Ring (J7).
(16) Remove the Reverse Roller (1291).
<Cleaning Reverse Roller>
Clean the surface of the Separation Roller with a
soft cloth, saturated with isopropyl alcohol.
