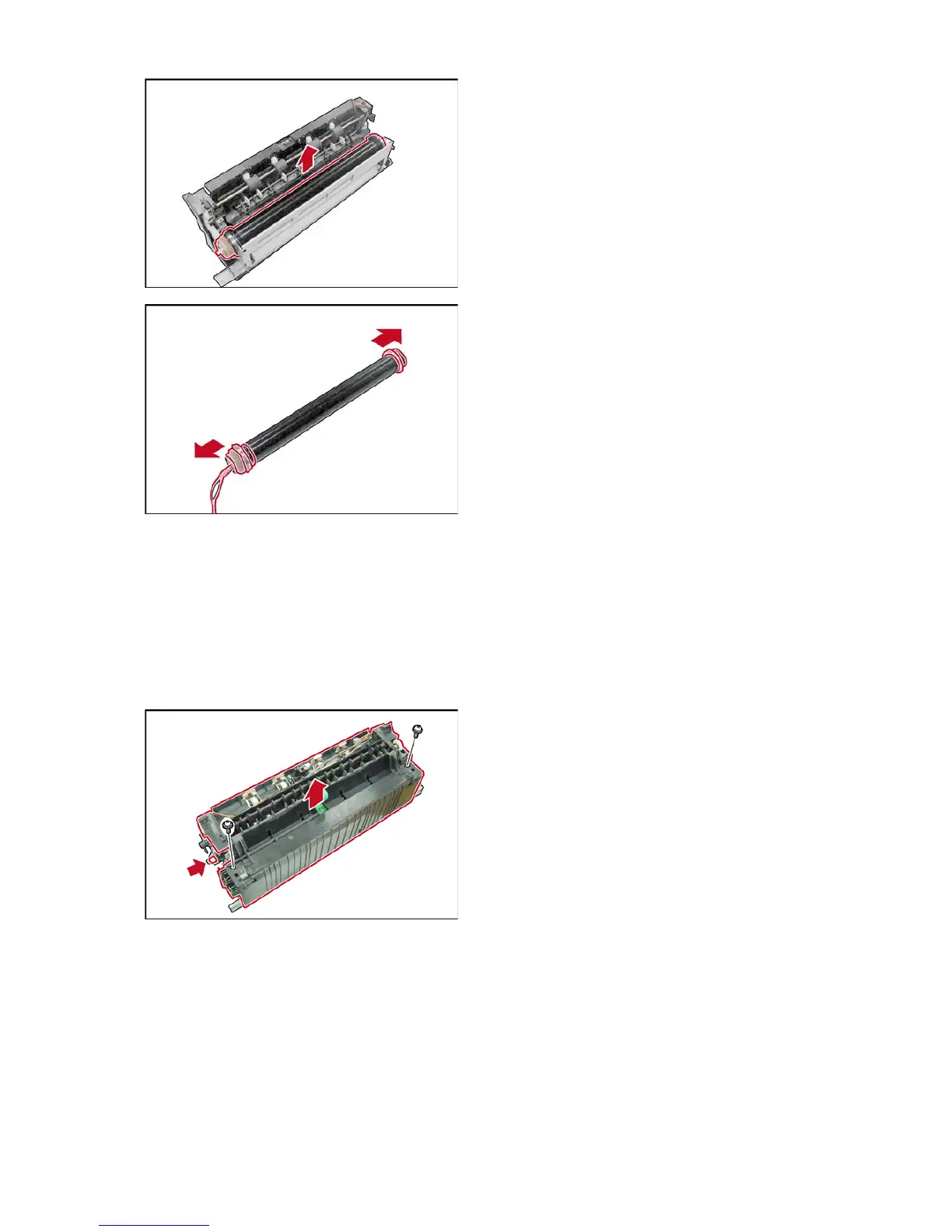

(42) Remove the Fuser Roller (1026) Assembly.
(43) Remove the 2 C-Rings (1078).
(44) Remove the E40 Heat Roller Gear (1014).
(45) Remove the Plate Spacer (1023).
(46) Remove the 2 Insulation Bushings (1006).
(47) Remove the 2 Bearings (1046).
Note:
1. The Plate Spacer is installed only to the non-
Gear side.
2. Do not scratch the surface of the Fuser Roller
when removing or reinstalling it.
<Cleaning Insulation Bushings>
Clean the Insulation Bushings with a soft cloth,
saturated with isopropyl alcohol.
<Cleaning Fuser Roller>
Clean the surface of the Fuser Roller with a soft
cloth, saturated with isopropyl alcohol.
(48) Disconnect the Harness.
(49) Remove 2 Screws (23).
(50) Remove the Upper Fuser Cover (1002).
