11.3. Operation and System Description
11.3.1. Outline of Operation
DA-DS330 and Host Machine exchange signals through serial communication and carry out the following 3
operation modes.
• Normal Exit
Discharge the paper into the Stack Tray.
• Staple Exit
Jog sheets of paper one at a time at the interstage stack, then staple when they reach the specified
number, and discharge into the Stack Tray.
• Shift Exit
Jog sheets of paper one at a time at the interstage stack, carry out shift operation, and discharge into the
Stack Tray.

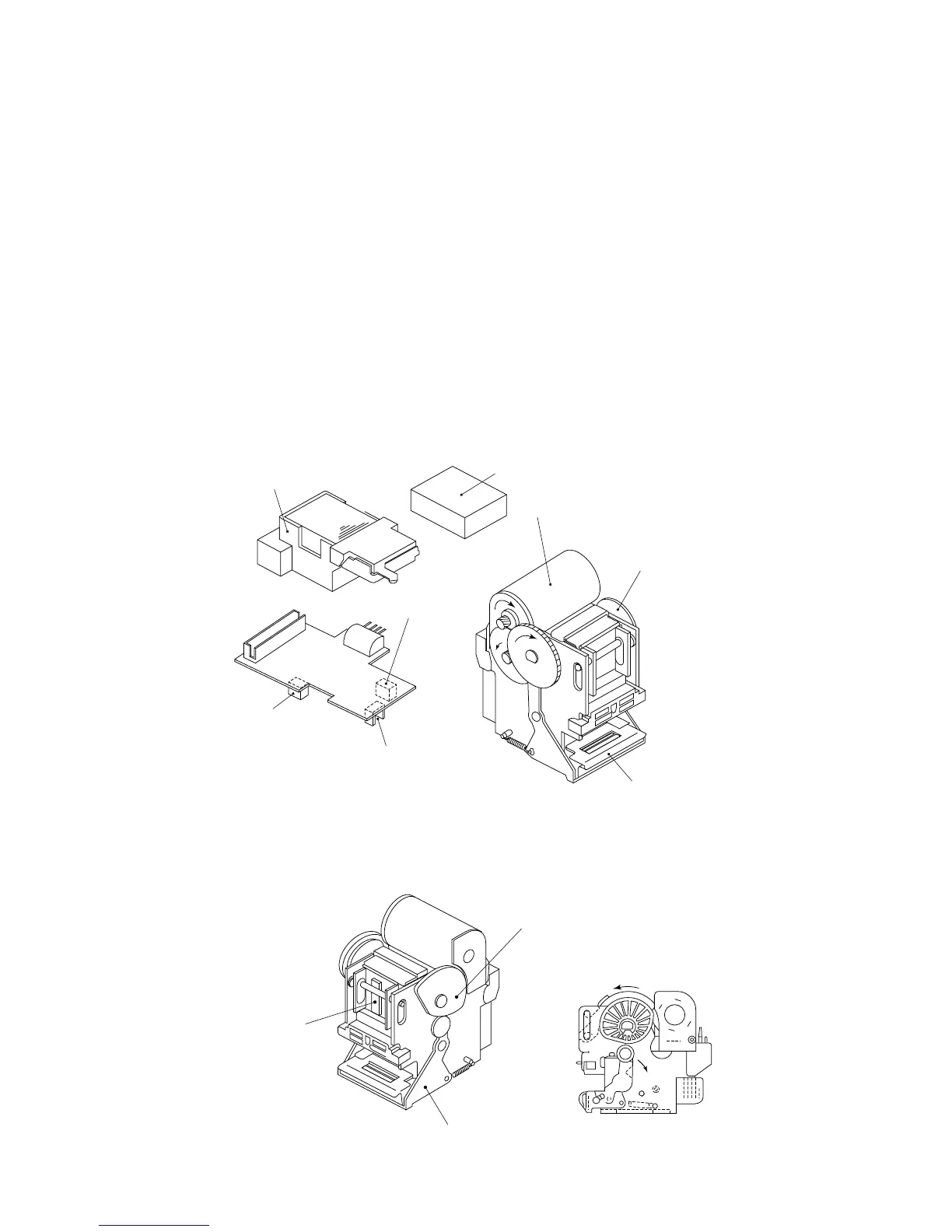

11.3.2. Stapling Mechanism
Stapling Mechanism 1.
• The stapler's motor rotation drives the stapler by the rotating cam via gear.
• The link is in contact with the cam. When the cam revolves, the link moves around its supporting point.
Stapling Mechanism 2.
S
taple Cartridge
FQ-SS32
Staple Motor
Cam
Staple Sensor
Staple Home Position
Sensor
Cartridge
Sensor
Staple Tab
le
Staple Table
S
taple Plate
Cam
