134
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010
4.4.3.1. ADF / i-ADF Feed Skew Adjustment
1. Front Page Skew Adjustment
Using a lined original (about 20 lb (80 g/m
2
) weight pager), make a copy from the ADF / i-ADF to check
for feeding alignment.

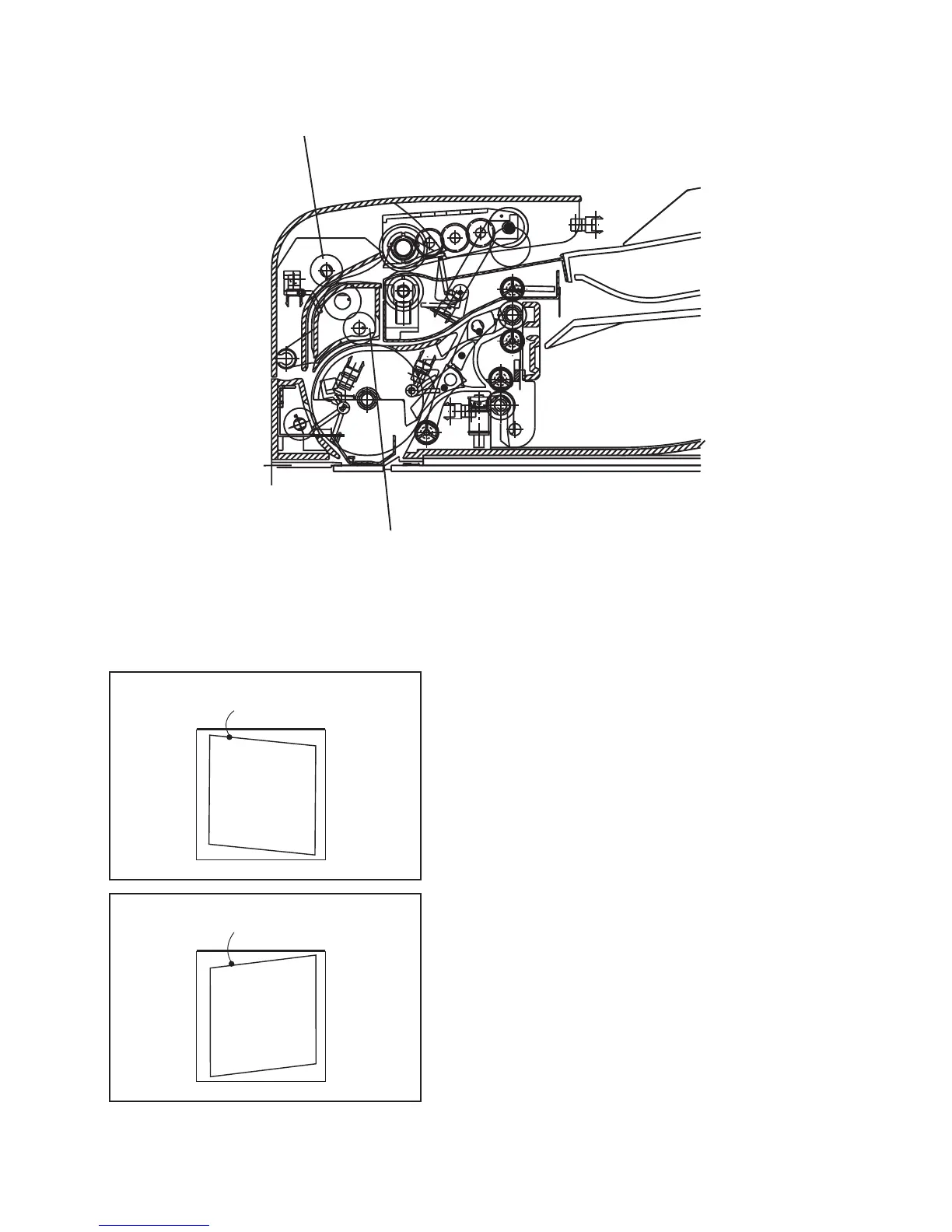

Adjust the Feed Skew Adjustment "A" downwards
and recheck the feeding alignment. Readjust as
needed.
Adjust the Feed Skew Adjustment "A" upwards and
recheck the feeding alignment. Readjust as needed.
Pinch Roller (1838)
(Reverse Registration or Feed Skew Adjustment "B")
Pinch Roller (1838)
(Feed Skew Adjustment "A")
Document Leading Edge
< Example of Printed Image >
A
Document Leading Edge
< Example of Printed Image >
A
To Next Page
