Panasonic DP-2330

55
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

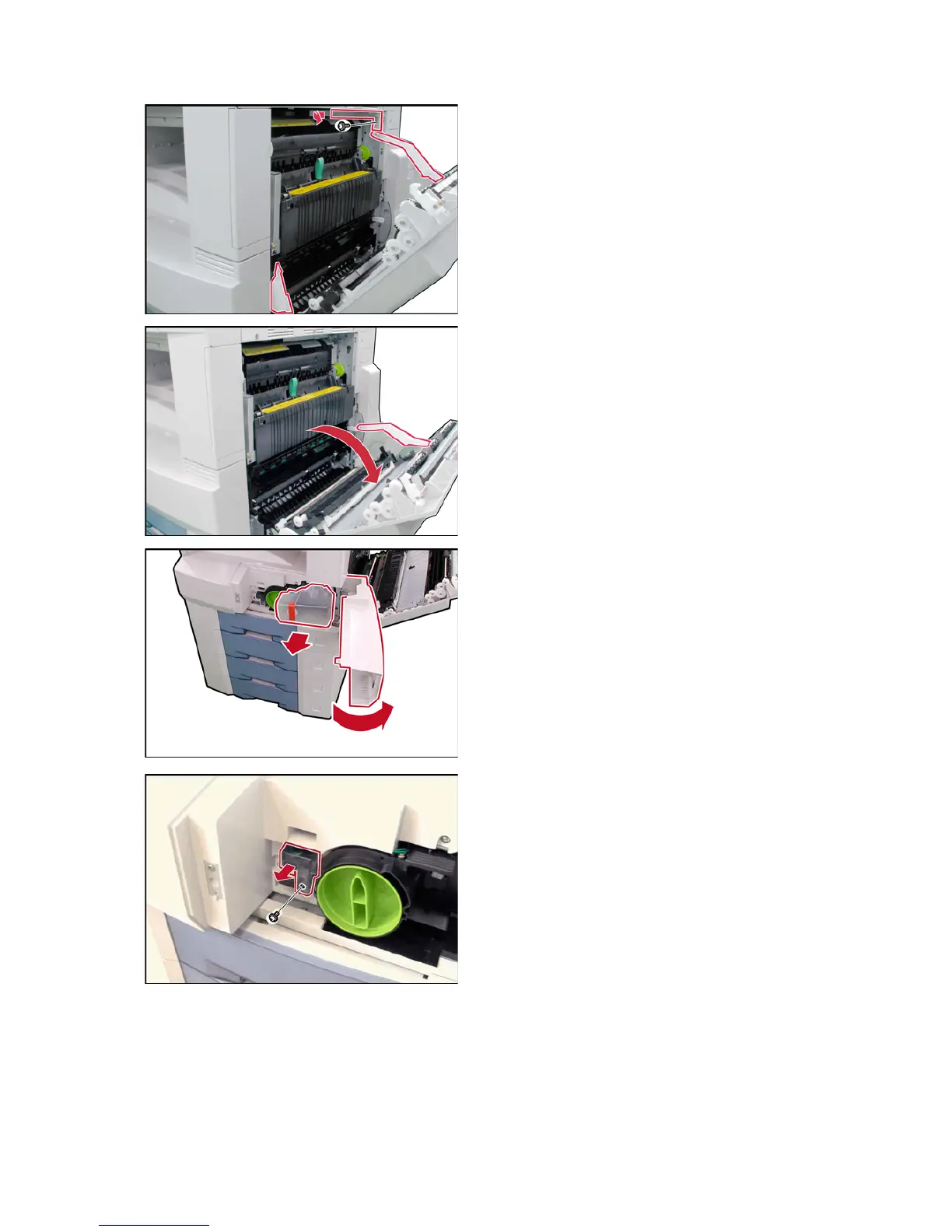

2.2.4. Process Unit
(1) Open the Right Cover (1201).
(2) Remove 1 Screw (6P).
(3) Remove the Harness Cover (1525).
(4) Unlock the Angled Rear Arm (1218) and
the Front Arm (1217).
(5) Open the Right Cover and hook the Angled
Rear Arm into the lower Hook Hole.
(6) Open the Front Cover (528).
(7) Remove the Toner Waste Container (618).
(8) Remove the Toner Bottle (617).
(9) Remove 1 Screw (19).
(10) Remove the Connector Cover (Clear Blue)
(538).
