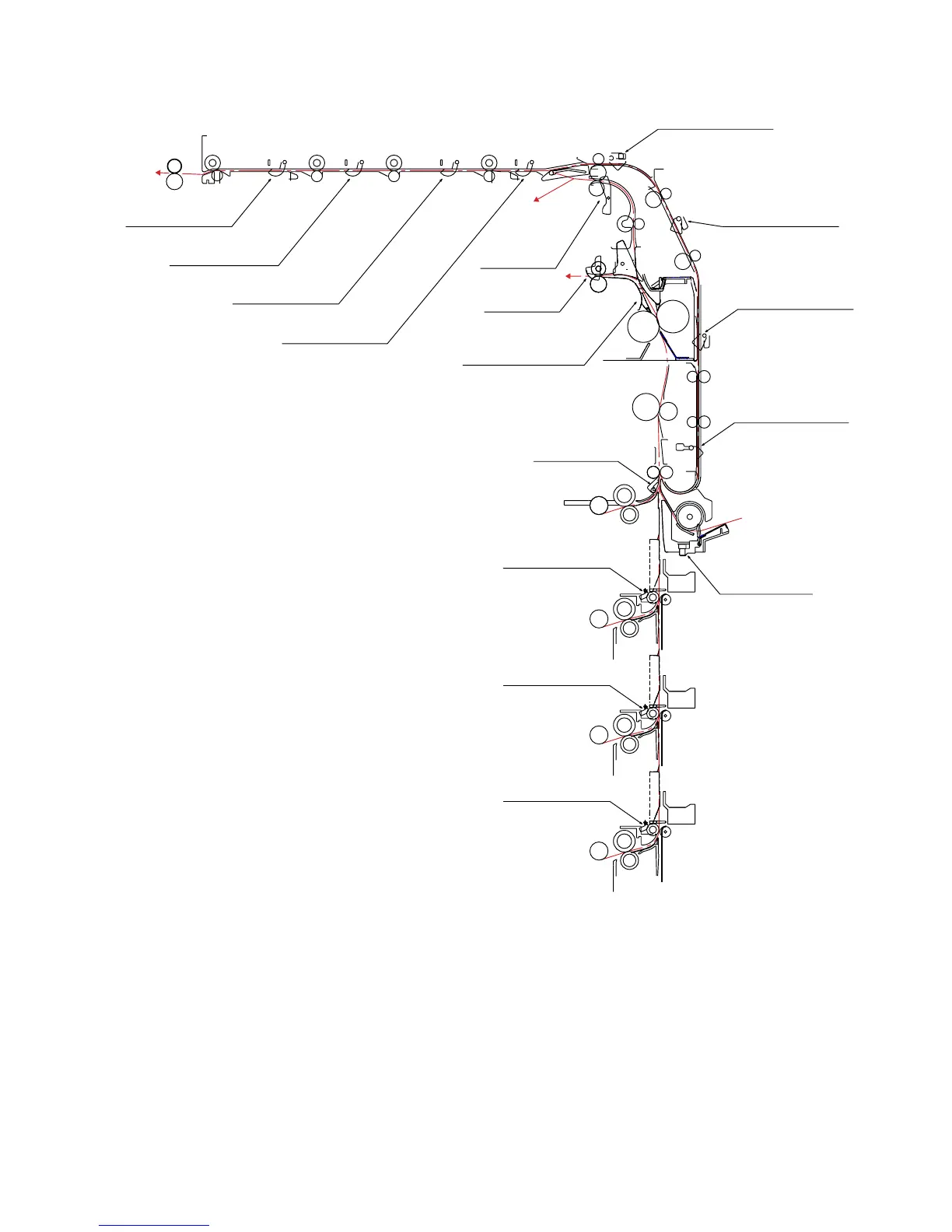

• Jam Sensor Location of Printer
2nd Paper Tray
Sheet Bypass
Automatic Duplex
Unit Sensor 4
Automatic Duplex
Unit Sensor 3
Automatic Duplex
Unit Sensor 1
Registration
Sensor
2nd Registration
Sensor
3rd Registration
Sensor
4th Registration
Sensor
Automatic Duplex
Unit Sensor 2
Sheet Bypass
NP Sensor
Paper Transport
Unit Sensor 1
Paper Transport
Unit Sensor 2
Paper Transport
Unit Sensor 3
Paper Transport
Unit Sensor 4
Dual-Path
Exit Sensor
Fuser Unit
Paper Exit Sensor
Exit Sensor
1st Paper Tray
3rd Paper Tray
4th Paper Tray
