332
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010
8.21. Installing the Stand (DA-DA310-PA / DA320-PA) for DP-2310/3010
8.21.1. Contents
8.21.2. Installation
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
Note:
The following illustrations depict the Installation of Stand (DA-DA310).

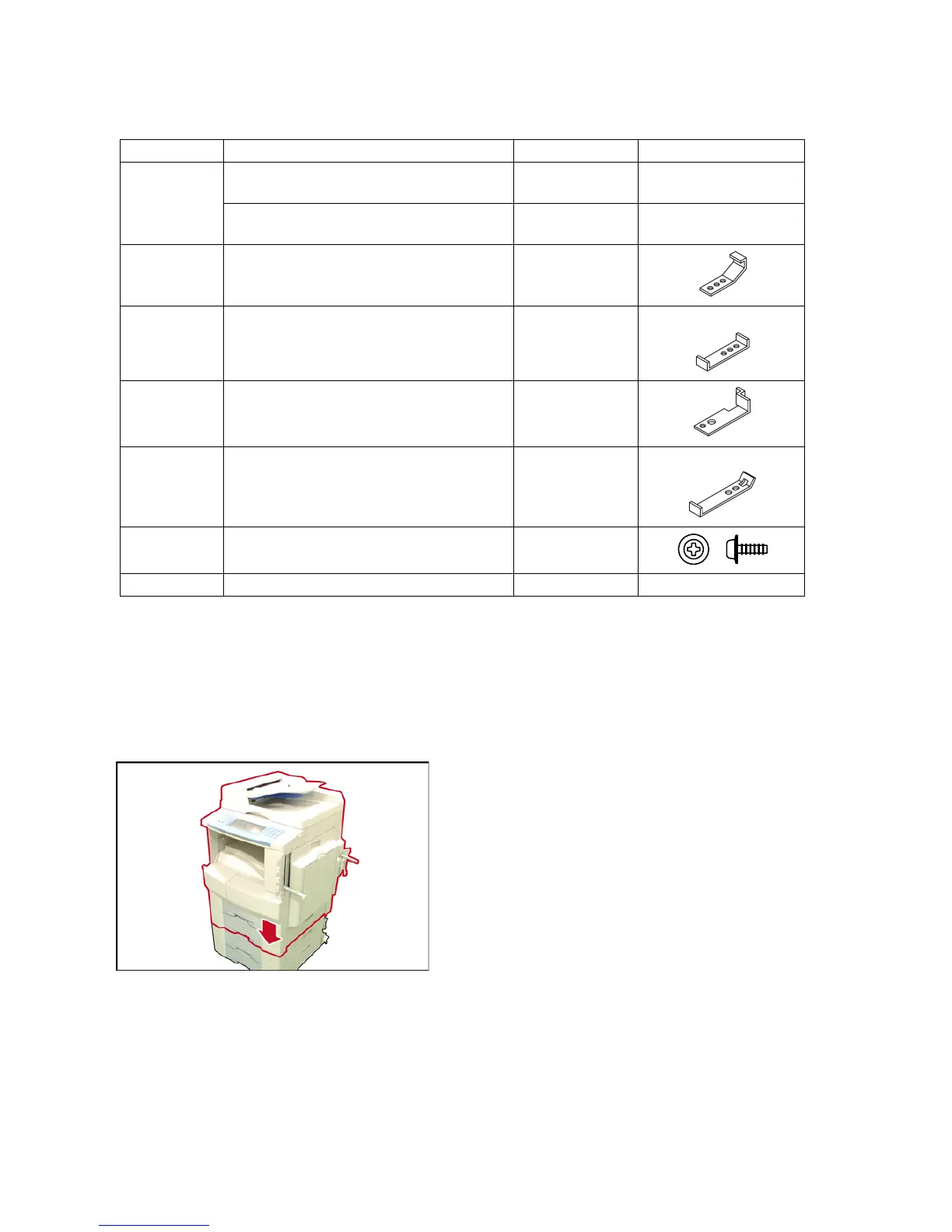

Qty. Description Part No. Remarks
1
Stand (DA-DA310-PA = High)
-----
2-Paper Trays
Configuration
Stand (DA-DA320-PA = Low)
-----
3-Paper Trays
Configuration
1 Joint Bracket A (Right Front)
DZKK000068
1 Joint Bracket B (Right Rear)
DZKK000069
Shorter piece
1 Joint Bracket D (Left Front)
DZKK000071
1 Joint Bracket E (Left Rear)
DZKK000072
Longer piece
4 Screw DZPD000005
1 Installation Instruction DZSM000738 This document
(1) Place the machine on top of the Stand as
illustrated.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries,
use the appropriate number of personnel and the
proper equipment to lift or move the machine.
To Next Page
