2.2.5. Fuser Unit
CAUTION:
To prevent from getting burned, do not install, remove, clean or make adjustments when the Fuser Unit is
hot.

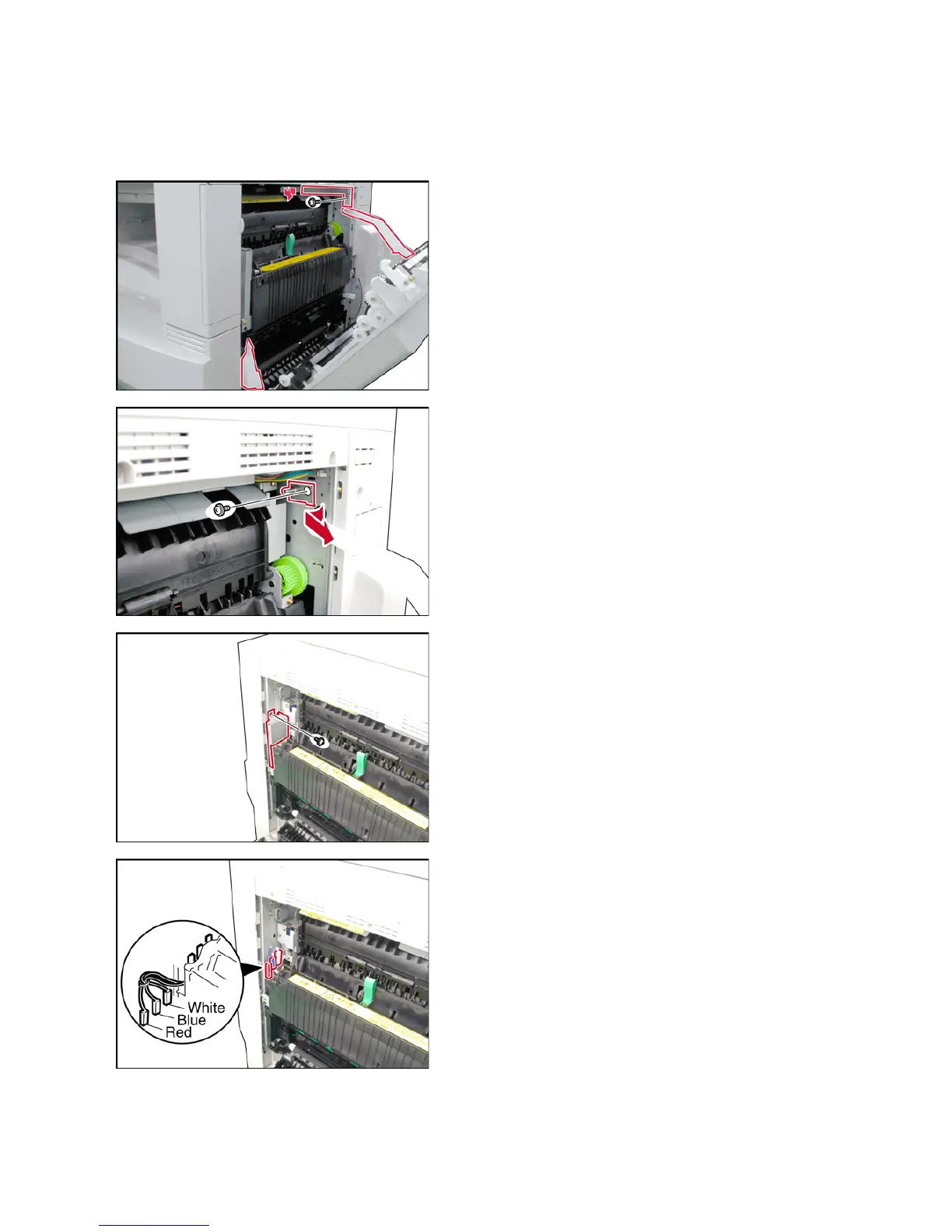

(1) Open the Right Cover (1201).
(2) Remove 1 Screw (6P).
(3) Remove the Harness Cover (1525).
(4) Unlock the Angled Rear Arm (1218) and
the Front Arm (1217).
(5) Remove 1 Screw (6P).
(6) Remove the Support Plate (476).
(7) Remove 1 Screw (6P).
(8) Remove the Strap Cover (1022).
(9) Disconnect the 3 Harnesses on the Terminals of
Fuser Unit.
Note:
When reinstalling, make sure that the 3 Harnesses
are connected correctly as illustrated.
