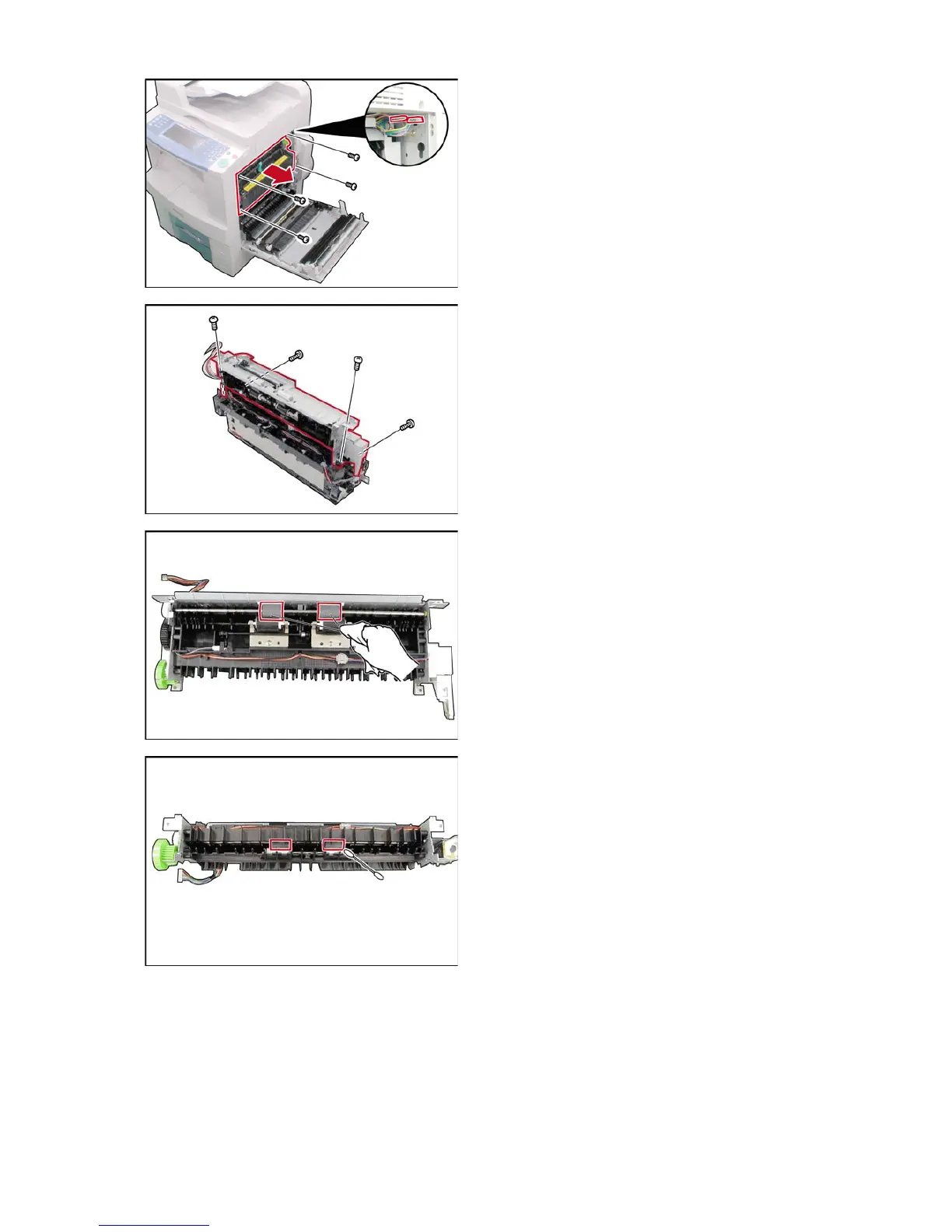

(10) Disconnect 2 Harnesses.
(11) Remove 4 Screws (4N).
(12) Remove the Fuser Unit.
(13) Remove 4 Screws (6P).
(14) Remove the Dual-Path Exit Guide.
(15) Clean the Feed Roller (1510) with a soft cloth,
saturated with isopropyl alcohol.
(16) Clean the Feed Roller (1510) with a soft cloth,
saturated with isopropyl alcohol.
