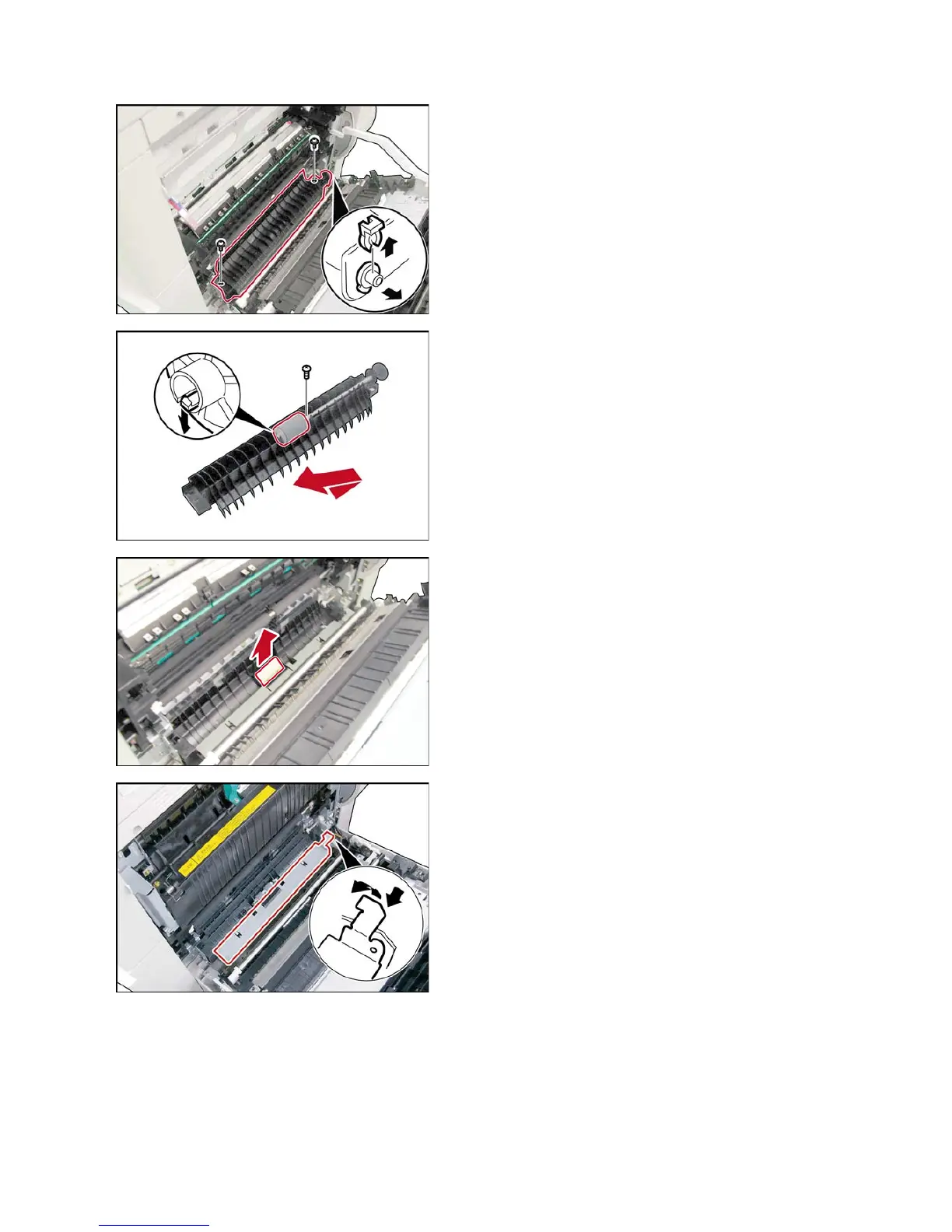

2.2.8. Sheet Bypass
(1) Remove 1 Screw (19).
(2) Remove 1 Screw (1Y).
(3) Remove the Snap Ring (S9).
(4) Remove the P6L5 Conductive Bushing (972).
(5) Remove the Dual-Path Guide (1203).
(6) Remove 1 Screw (19).
(7) Remove the Feed Roller (1244).
<Cleaning Feed Roller>
Clean the surface of the Feed Roller with a soft
cloth, saturated with isopropyl alcohol.
<For DP-2310/3010>
(8) Remove the Separator Pad (1242).
<Cleaning Separator Pad>
Clean the rubber surface of the Separator Holder
pad with a soft cloth, saturated with isopropyl
alcohol.
<For DP-2330/3030>
(9) Remove the Pressure Plate (1295).
