Panasonic DP-2330

247
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

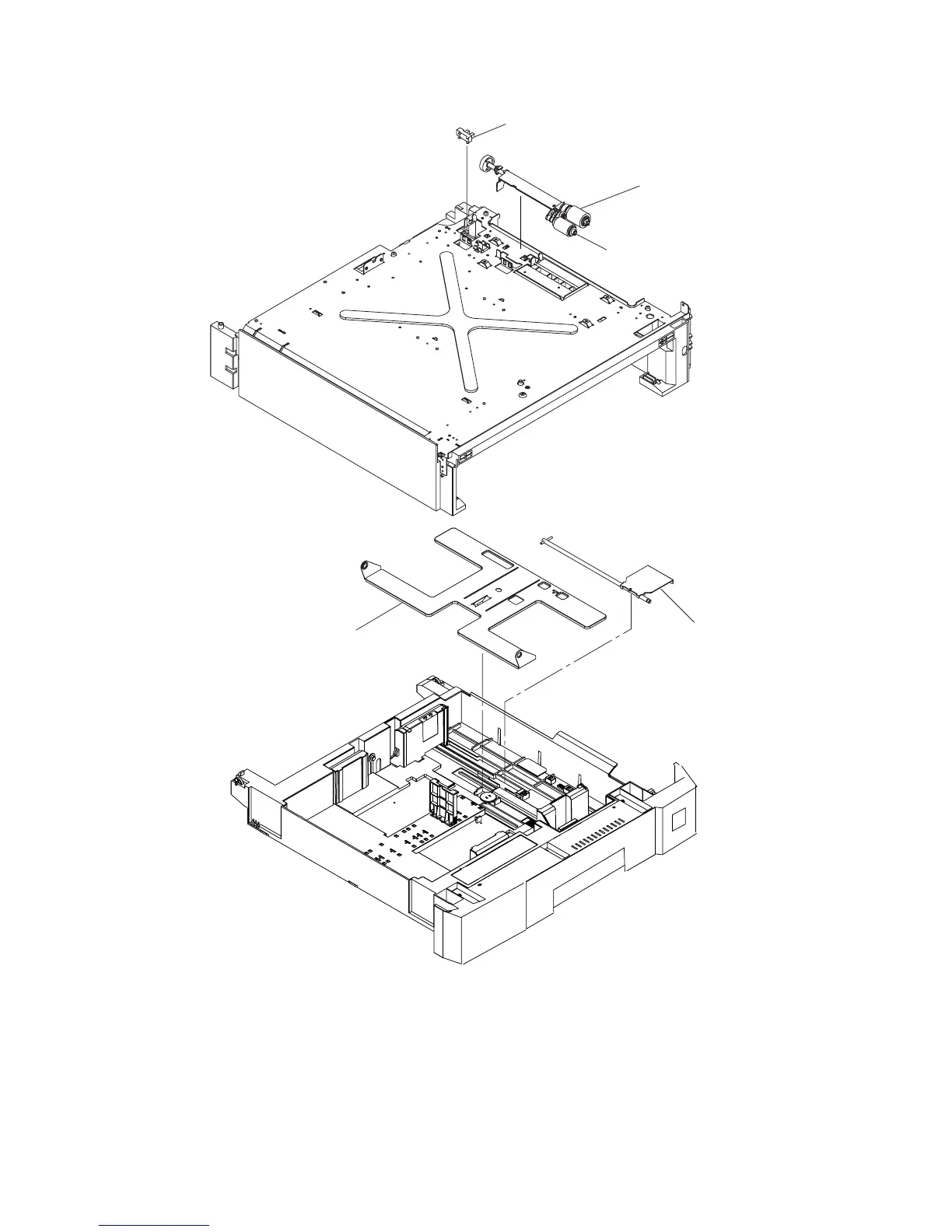

< Paper Feed Module Lift up Mechanism >
a. When inserting the Paper Tray into the machine, the NP Sensor (1045) activates. At the same time,
the Lift Plate (2009) is combined with the coupling which drives the Lift Plate of the machine. The
Lift Plate rotates, lifting the Bottom Plate (2008) and the Recording Paper.
b. Once the Bottom Plate and the Recording Paper are raised, the NP Sensor (1045) is turned ON.
The Lift DC Motor (1152) stops rotating, maintaining the recording paper at the certain level.
NP Sensor (1045)
C25 Gear Roller
(1145)
Paper Feed Roller
(1144)
Bottom Plate (2008)
Lift Plate (2009)
