Panasonic DP-2330

78
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

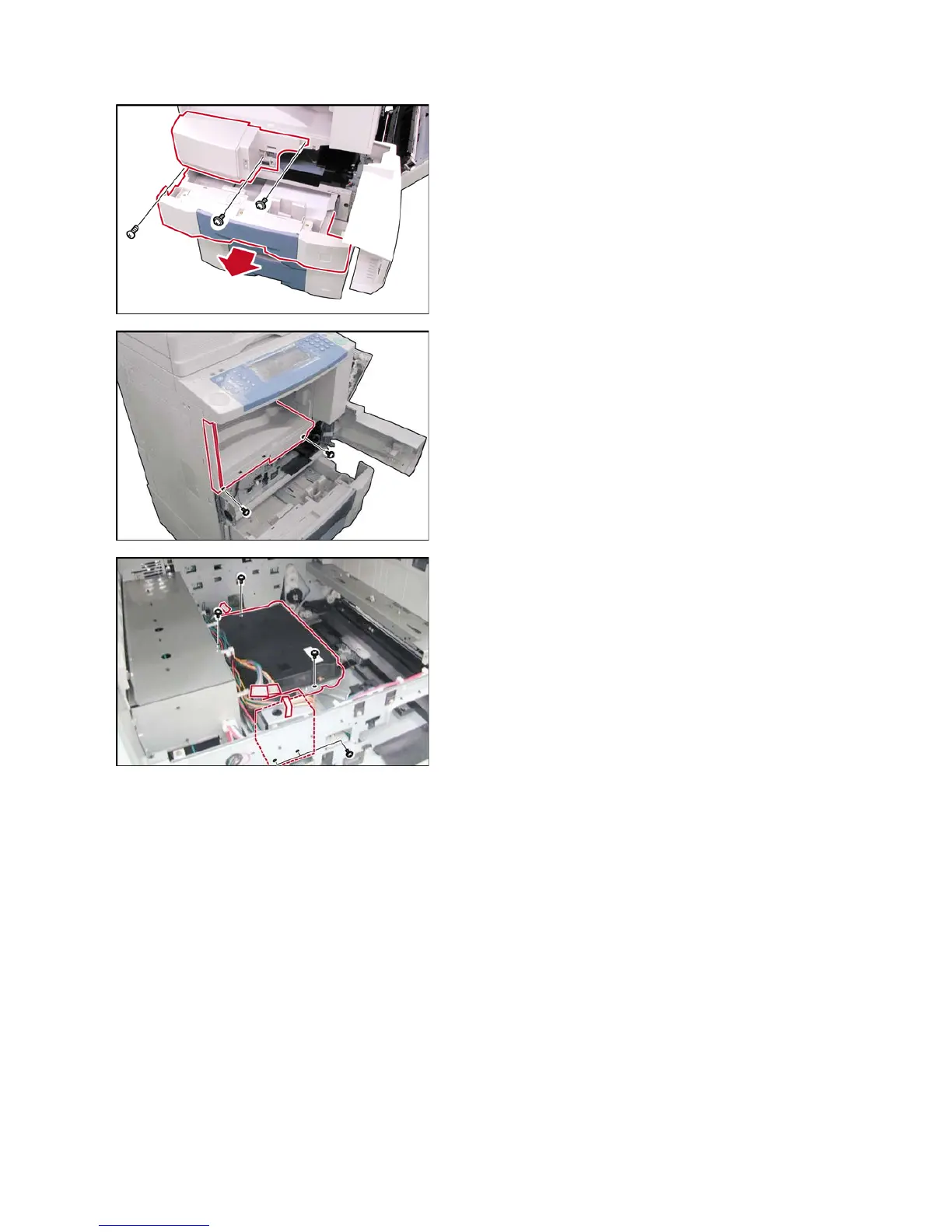

2.2.10. LSU Unit
(1) Remove the Process Unit. (Refer to 2.2.4.)
(2) Slide the 1st Paper Tray out.
(3) Remove 1 Screw (19) and 2 Screws (6P).
(4) Remove the Front Left Cover (534).
(5) Remove the Blind Cover (530).
(6) Remove 2 Screws (S6).
(7) Remove the S Inner Cover (524).
(8) Disconnect 3 Harnesses.
(9) Remove 3 Screws (23).
(10) Remove the LSU (420).
(11) Remove 2 Screws (6P).
(12) Remove the LSU Fan (315) Assembly.
