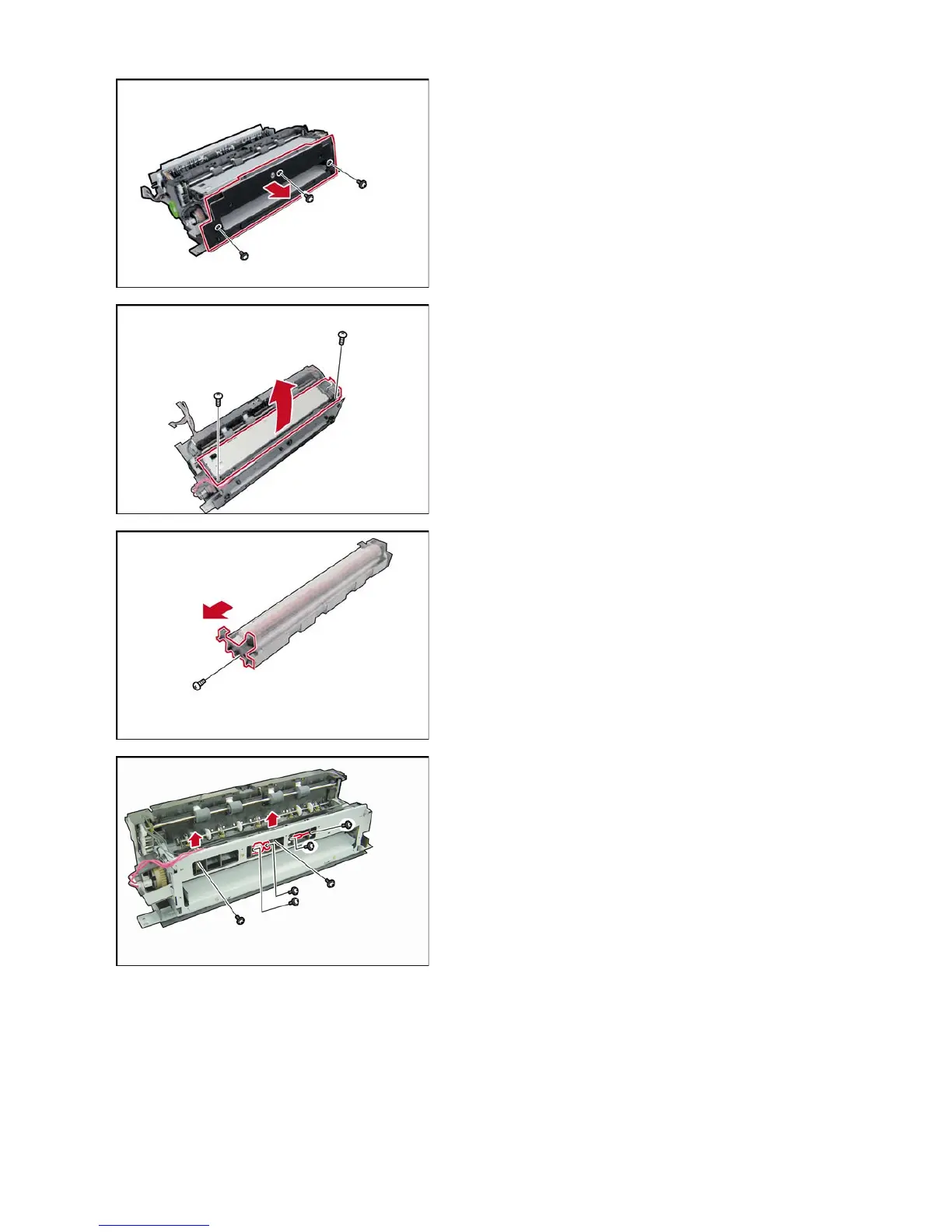

(17) Remove 3 Screws (4N).
(18) Remove the Lower Fuser Cover (1003).
<Removing the Web Cleaning Roller>
(19) Remove 2 Screws (21).
(20) Disconnect the Harness.
(21) Remove the Cleaning Web Roller Unit.
(22) Remove 1 Screw (21).
(23) Remove the Rear Web Bracket (1071).
(24) Remove the Cleaning Web Roller (1083) and
Web Pressure Roller (1080).
(25) Remove 2 Screws (36).
(26) Remove the Thermostat (1038).
(27) Remove 2 Screws (36).
(28) Remove the Thermal Fuse (1040).
(29) Remove 2 Screws (1Y).
(30) Remove the Thermistor Assembly (1041).
