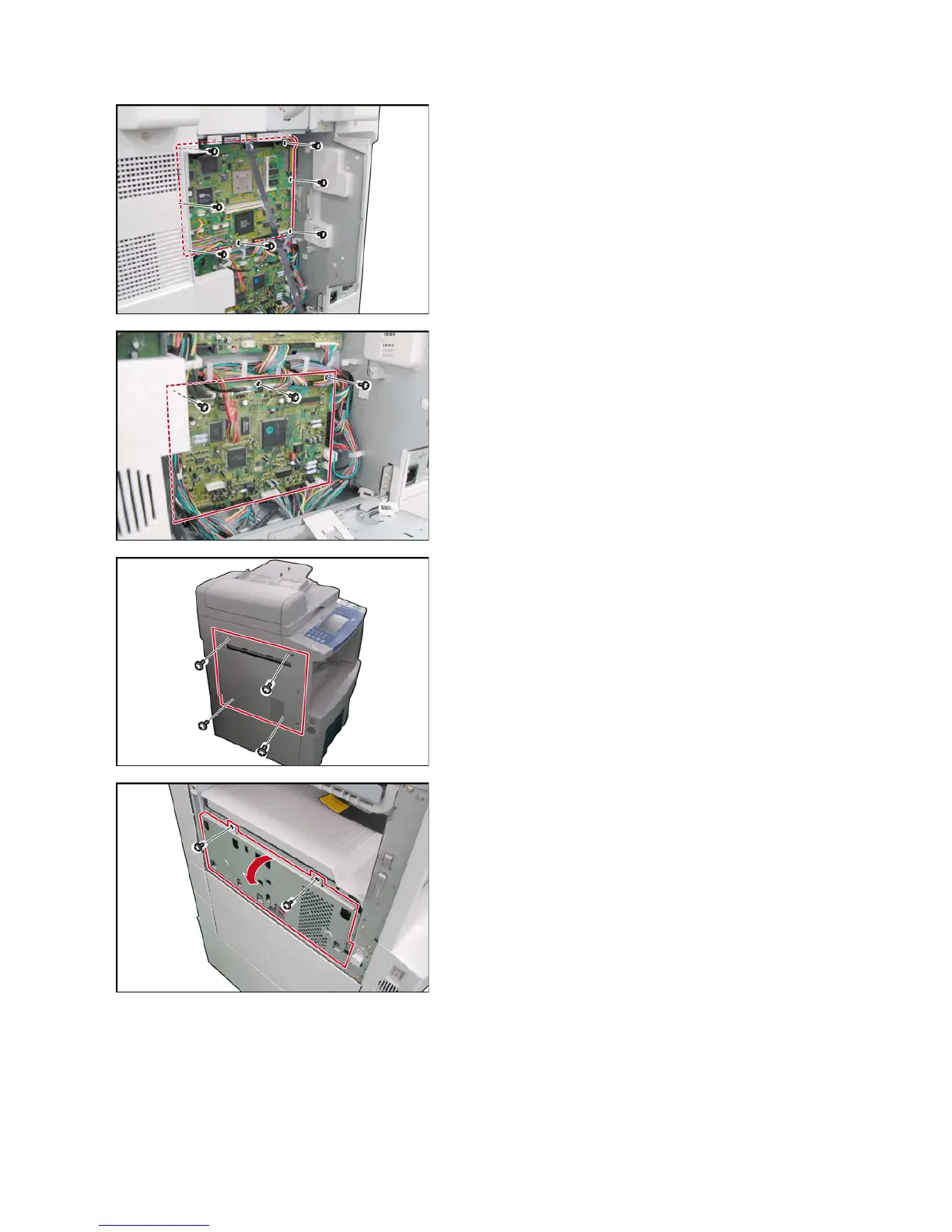

2.2.12. PC Board
(1) Remove 7 Screws (6P).
(2) Disconnect all the Harnesses on the SC PC
Board.
(3) Remove the SC PC Board (1901).
(4) Remove 3 Screws (6P).
(5) Disconnect all the Harnesses on the SPC PC
Board.
(6) Remove the SPC PC Board (1902).
(7) Remove 2 Shoulder Silver Screws (L8: Upper)
and 2 Silver Screws (S6: Lower).
(8) Remove 2 Screws (6P).
(9) Open the LVPS Cover (301).
