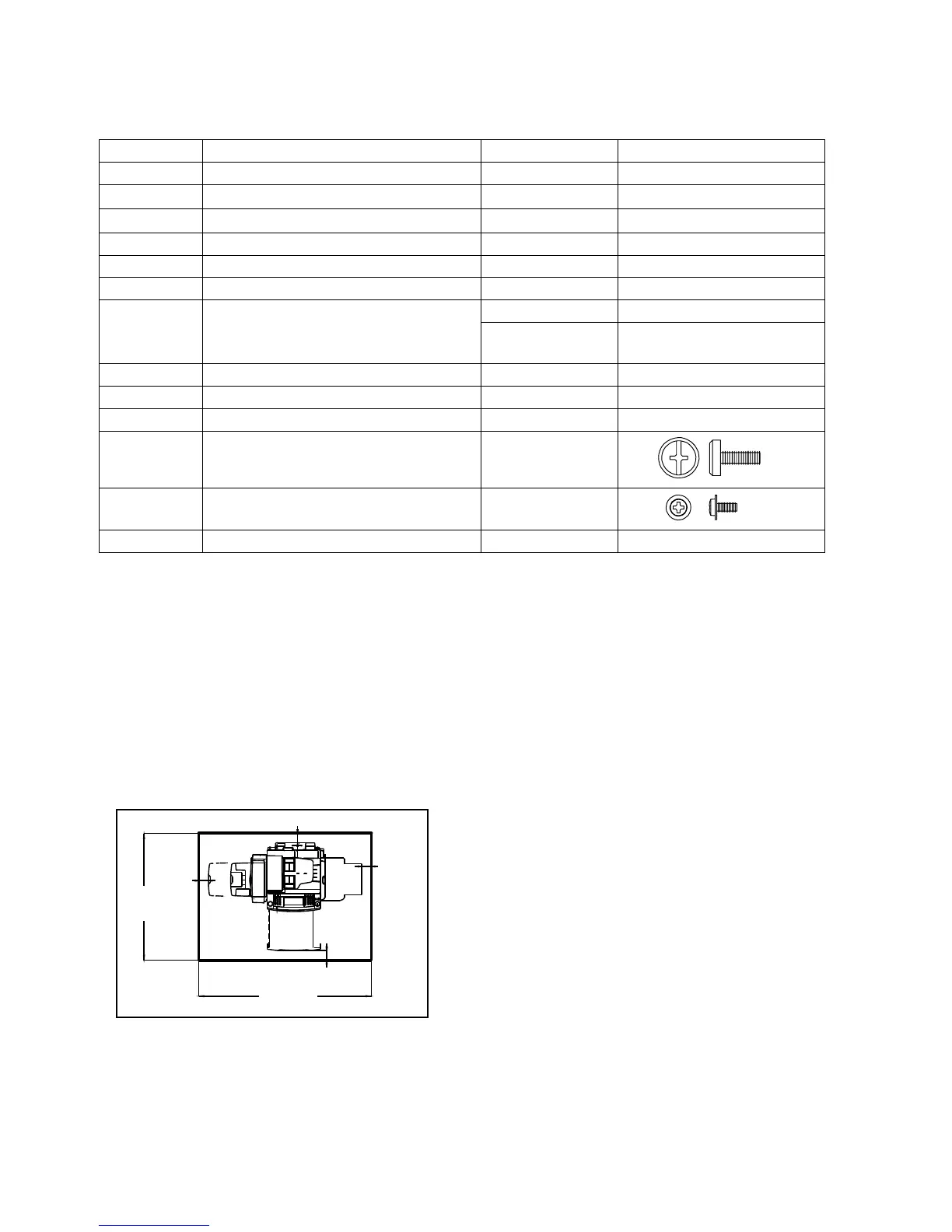

8.23. Installing the 1-Bin Finisher (DA-FS300)
8.23.1. Contents
Note:
1. The part number may differ depending on the Destination.
2. Refer to the Parts List in the Parts Manual.
3. Before you begin the installation of your 1 Bin Finisher (DA-FS300), read these entire
instructions.
8.23.2. Installation
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
Qty. Description Part No. Remarks
1 1-Bin Finisher See Note
1 Finisher Tray Assembly
PF4124K127
1 Base Bracket
PF4124P001
1 Front Slide Guide Bracket PF4124P002
1 Rear Slide Guide Bracket PF4124P003
1 IPC PC Board PF4117P003
1
Optional LVPS
ETXDN282A4AA For USA and Canada
ETXDN282E4AA
For EU and Other
Destinations
1 FNS Harness DZFP001448
1 LVS2 Harness DZFP001407
2 Snap Ring PF2252P619
4 Thumb Screw (Silver)
PF4124P023
7Screw
XTW3+6LFC
1 Installation Instructions DZSM000689 This document
Note:
Make sure that there will be adequate space for
working area (i.e., removal of paper).
3.94 in (100 mm)
3.94 in
(100 mm)
3.94 in
(100 mm)
3.94 in
(100 mm)
51.65 in
(1312 mm)
71.06 in
(1805 mm)
