335
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

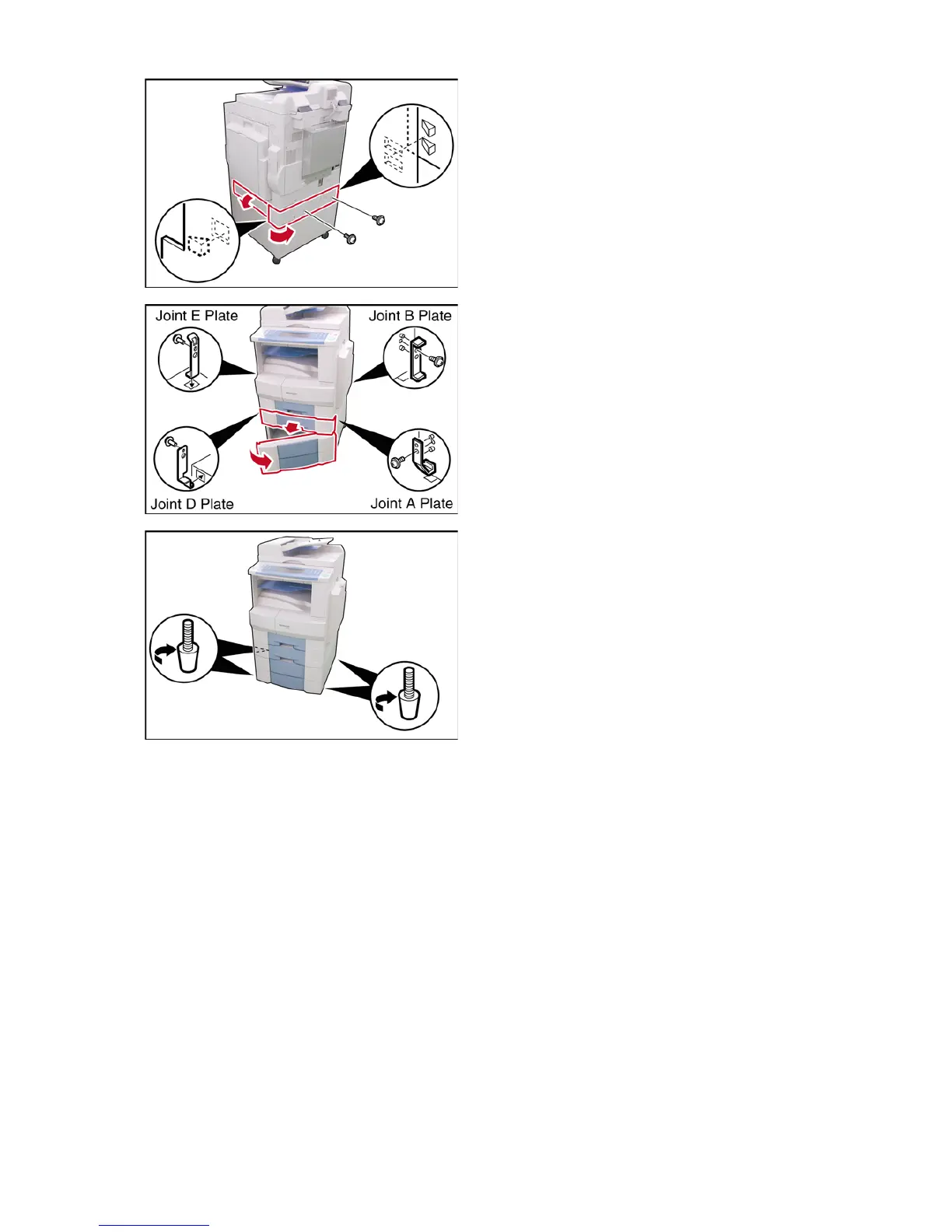

(2) Remove 2 Silver Screws.
(3) Open the Jam Access Cover.
(4) Remove the Lower Rear Cover.
(5) Open the Front Cover of the Stand.
(6) Open the 2nd Paper Tray.
(7) Connect the machine to the Stand with 4 Joint
Brackets.
(8) Secure each Joint Bracket with 4 Screws.
(9) Close the 2nd Paper Tray and the Front Cover of
the Stand.
(10) Reinstall the Lower Rear Cover.
(11) Place the machine at a desired location and
lower the leveler on each corner to stabilize the
machine.
(12) Plug the AC Power Cord into the wall outlet and
turn the Main Power Switch on the Back and the
Power Switch on the Left Side of the machine to
the ON position.
To Next Page
