Panasonic DP-2330

43
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

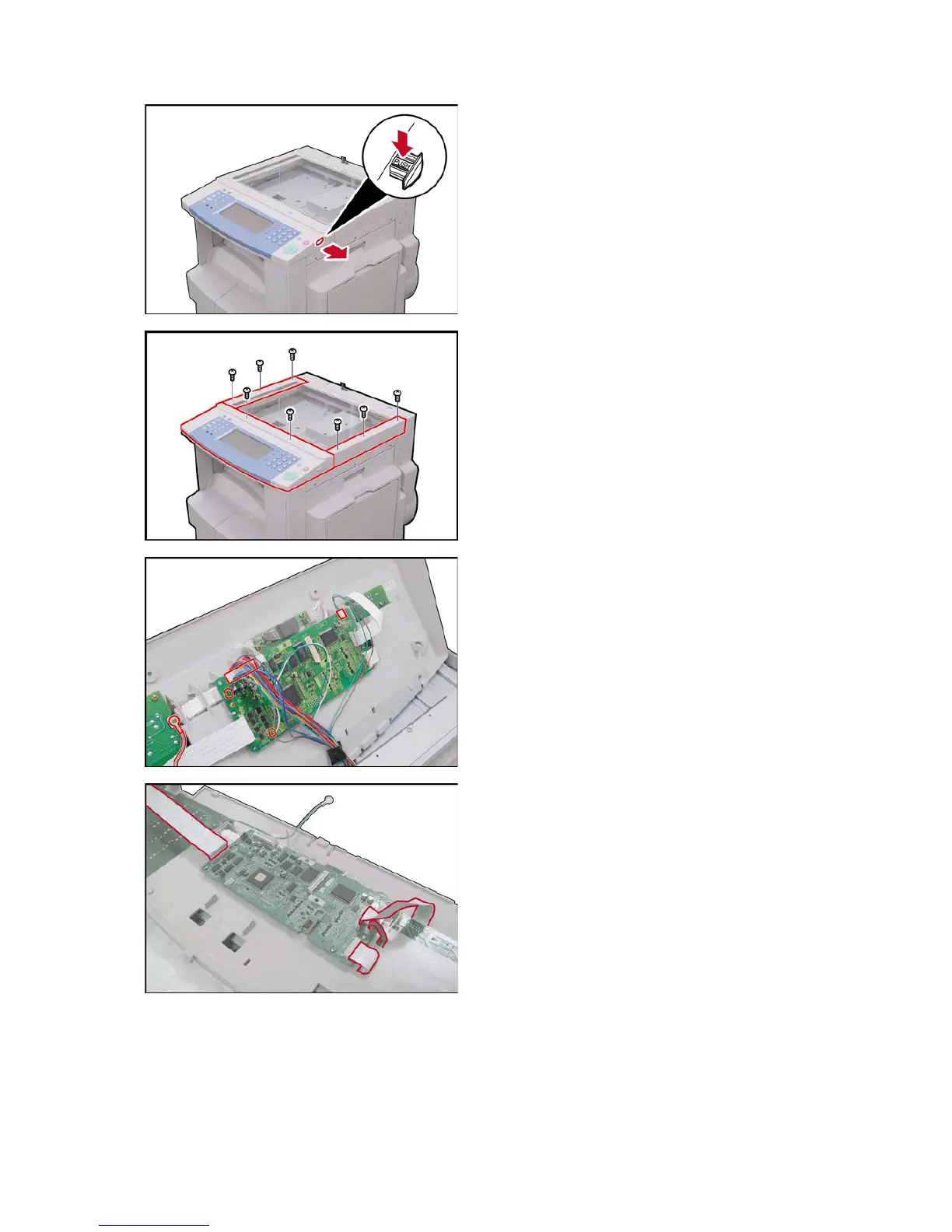

2.2.2. Control Panel Unit
(1) Pull the Battery Holder (104) part of the way
out.
(2) Release the Latch and remove the Battery
Holder (104) out.
(3) Remove 6 Silver Screws (B1).
(4) Remove the Left Platen Cover (514) and the
Right Platen Cover (516).
(5) Remove 2 Silver Screws (B1).
(6) Slightly lift the Control Panel Assembly.
(7) Disconnect 4 Harnesses on the PNL1 PC Board
(CN220, CN221, CN222 and CN224).
(8) Remove 1 Screw (21) to disconnect the Ground
Connector.
(9) Remove the Control Panel Assembly.
(10) Disconnect 4 Harnesses on the PNL1 PC Board
(CN223, CN225, CN229 and CN230).
