Panasonic DP-2330

244
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010
6.6. Receive Mechanism
6.6.1. Paper Feed Modules
1. Paper Feed Module (1st/2nd/3rd/4th)
< NP Sensor Operation >
a. The NP Actuators (1133) attached to the Paper Feed Blocks No.1, 2, 3 and 4 determine if there is
paper in the paper tray.
b. The paper in the paper tray lifts up the NP Actuator, allowing the light from the LED to actuate the
NP Sensor (1045).

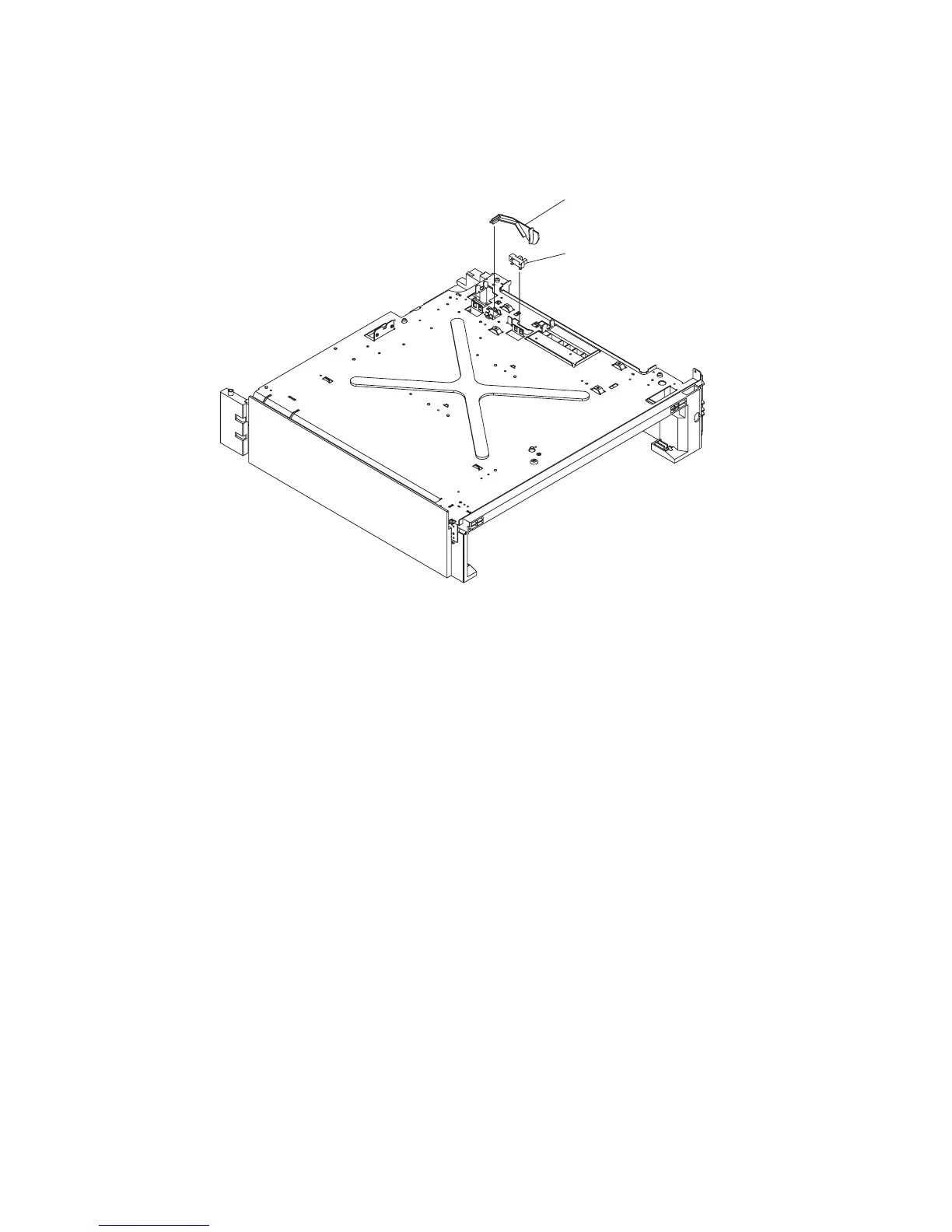

NP Sensor (1045)
NP Actuator (1133)
