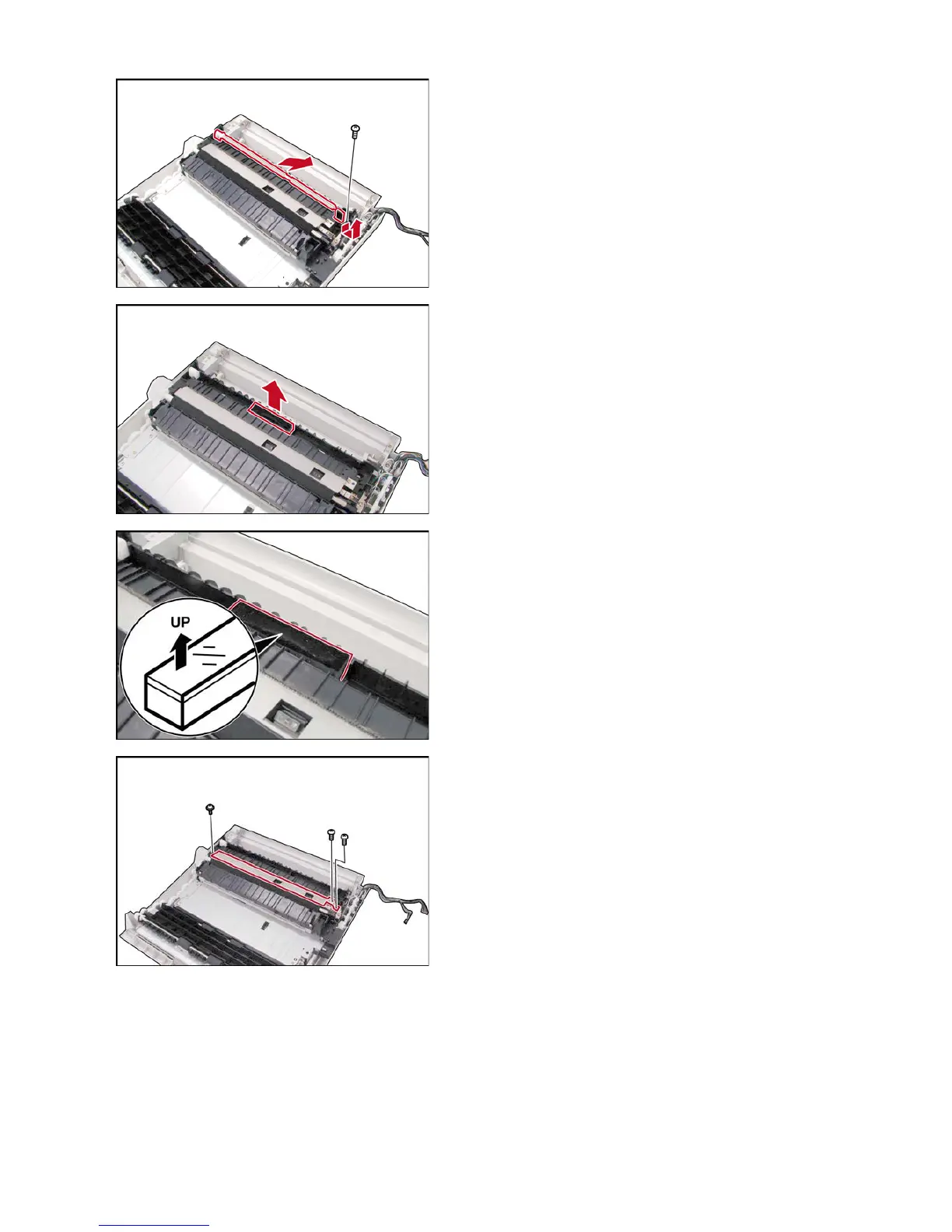

(11) Remove 1 Screw (19).
(12) Remove the Registration Pinch Roller (1222).
<Cleaning Registration Pinch Roller>
Clean the surface of the Registration Pinch Roller
with a soft cloth, saturated with isopropyl alcohol.
(13) Remove the Roller Cleaner (1229).
Note:
When installing the Roller Cleaner, make sure that
turn a felt of black side upwards as illustrated.
(14) Remove 3 Screws (C8).
(15) Remove the BTR Guide (1223).
