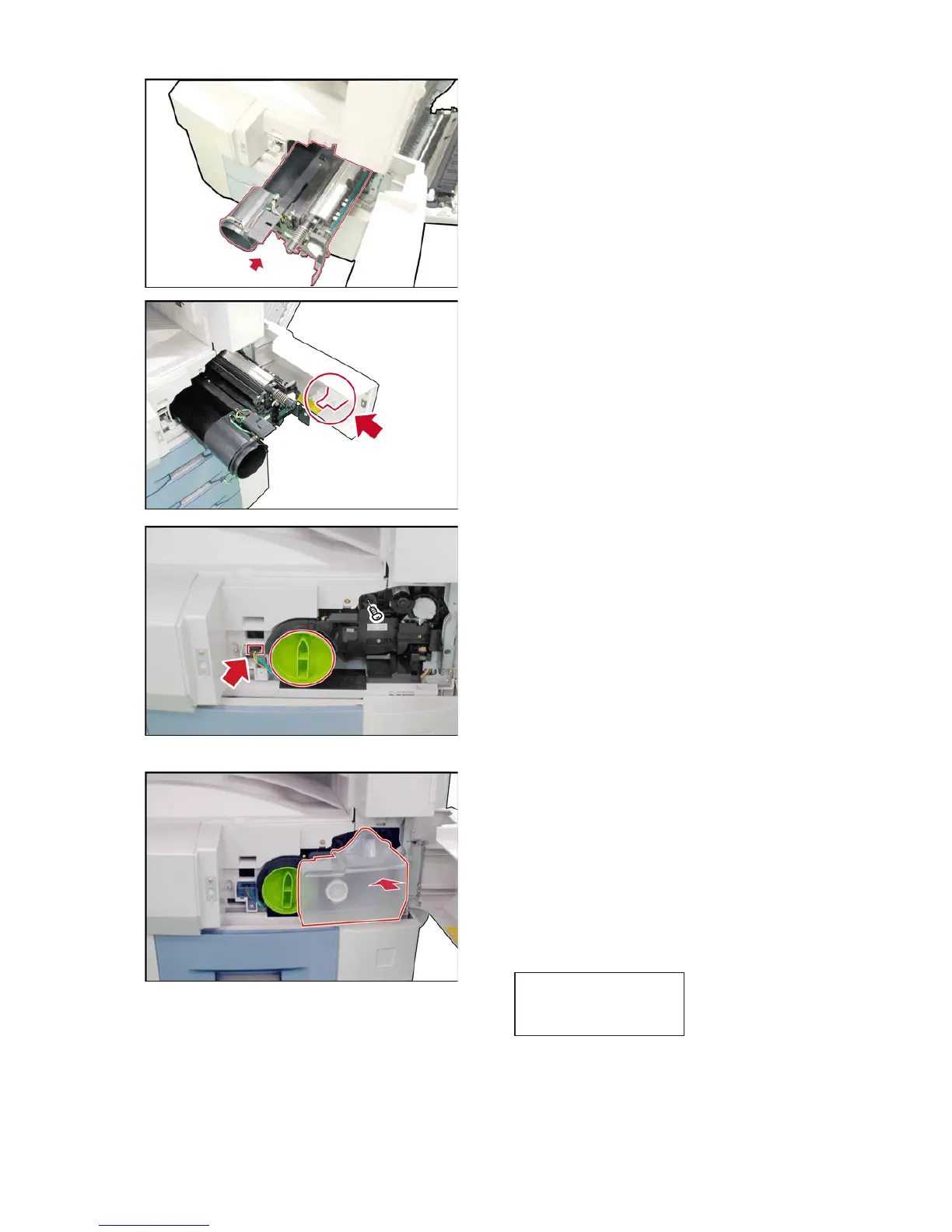

(35) Install the Process Unit.
Caution:
To prevent damage to the Process Unit, ensure
the Right Cover is still open before inserting the
Process Unit into the machine.
Caution:
Exercise caution not to scratch the surface of the
OPC Drum (Green), and not to touch it with bare
hands.
(36) Fasten the Process Unit with 1 Screw.
(37) Connect the Harness and reinstall the Connector
Cover and Screw.
(38) Shake the Toner Bottle 10 to 15 times to loosen
the contents.
(39) Insert the Toner Bottle into the Hopper Unit. Align
the Toner Bottle Key with the Key Alignment
Channel of the hopper unit. Insert the Bottle as
far as it will go and turn the Toner Bottle
clockwise until it locks in place. (Bottle's Green
Knob is lined up with the "Locked" symbol on the
Process Unit label)
(40) Install the Toner Waste Container.
(41) Close the Front and the Right Covers.
(42) Load paper into all of the trays.
(43) Plug the AC Power Cord into the wall outlet and
turn the Main Power Switch on the Back and the
Power Switch on the Left Side of the machine to
the ON position.
Note:
Perform the following adjustments after the
machine has warmed up and displays:
Ready To Copy
Set Originals
