4.3.18. Print Skew Adjustment for Platen Glass Scanning
Follow the procedures below to adjust for the skewing when scanning original(s) from the Platen Glass.
(1) Make sure that the Scanner Unit is in the
Standby Mode.

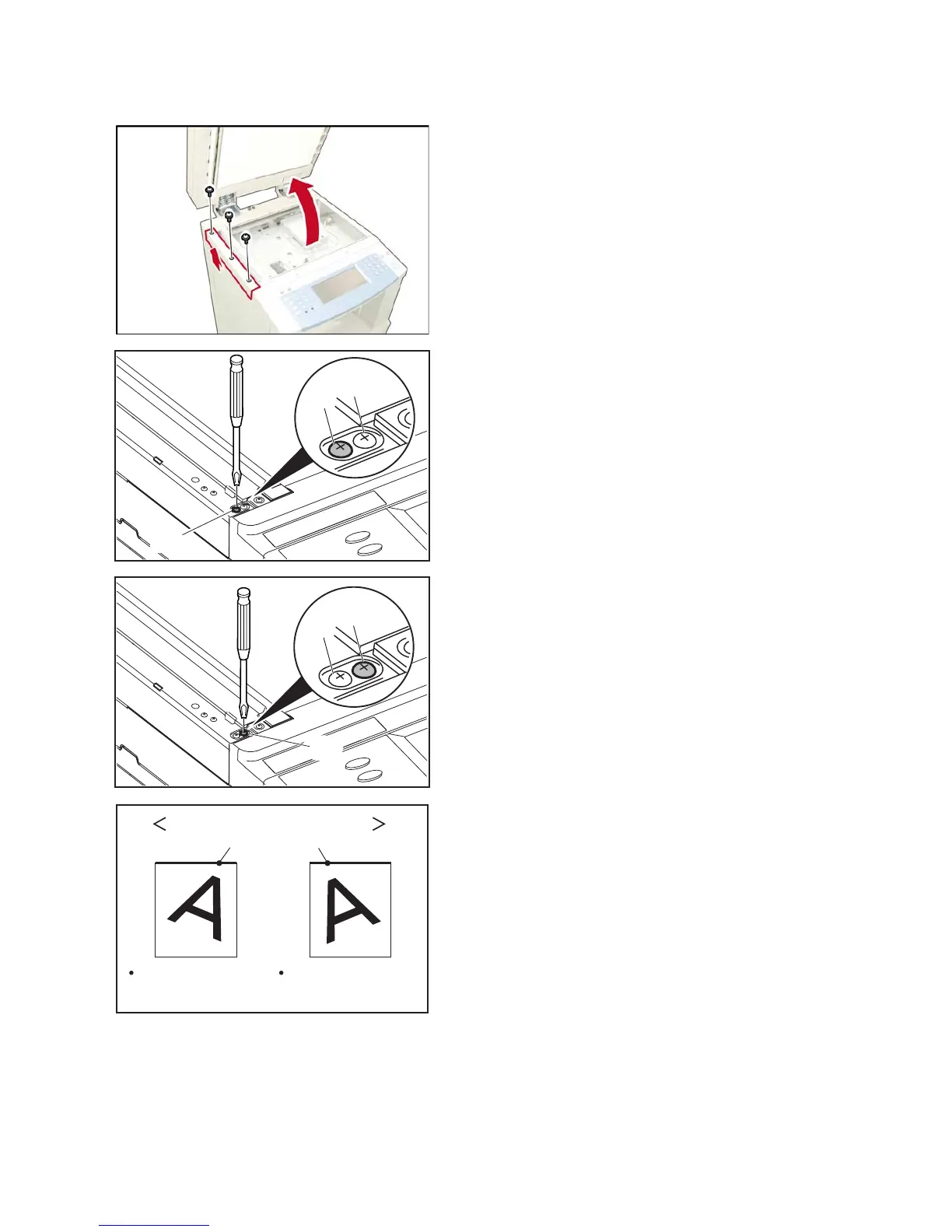

(2) Remove 3 Screws and the Left Platen Cover.
(3) Loosen the Left Screw (A).
(4) Adjust the Right Screw (B) to correct for
the skew of the leading edge of the document.
<Direction of Rotation and Skew Adjustment
Amount>
• Counter-clockwise → When the printed image is
skewed to the right side.
• Clockwise → When the printed image is skewed to
the left side.
• Rotation and amount of movement → One rotation
of the screw, adjusts the skewed image by
approximately 1 mm.
Note:
Do not rotate 2-3 turns at once to avoid other
problems.
(5) Make a copy to confirm the correction.
(6) Perform the Service Mode F6-03 to adjust the
Top field, if necessary.
(7) Tighten Screw (A) and reinstall the Left Platen
Cover.
(A)
(A)
(B)
(A)
(B)
(B)(B)(B)
Rotate Screw (B)
counter-clockwise
Document Leading Edge
Example of Printed Image
Rotate Screw (B)
clockwise
