2.2.6. Drive Unit

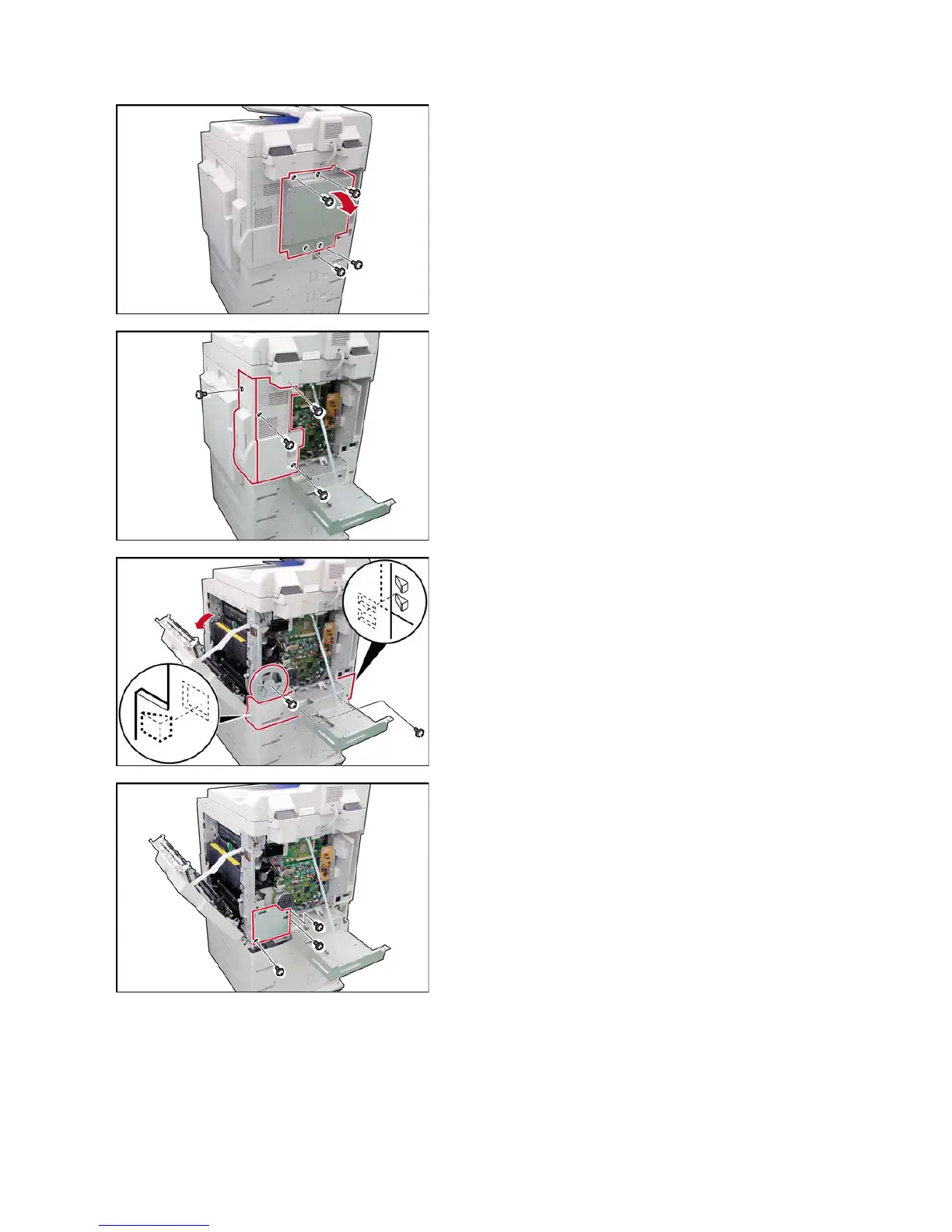

(1) Remove 4 Silver Screws (S6).
(2) Open the Rear Cover (302).
(3) Remove 4 Silver Screws (S6).
(4) Remove the Rear Right Cover (507) and the
Right Rear Cover (518).
(5) Remove 2 Silver Screws (B1).
(6) Remove the Lower Rear Cover (506).
(7) Remove 1 Screw (24).
(8) Remove 5 Fly Wheels (922).
(9) Remove the Process Unit. (Refer to 2.2.4.)
(10) Remove 3 Screws (21).
(11) Remove the HVPS Unit.
