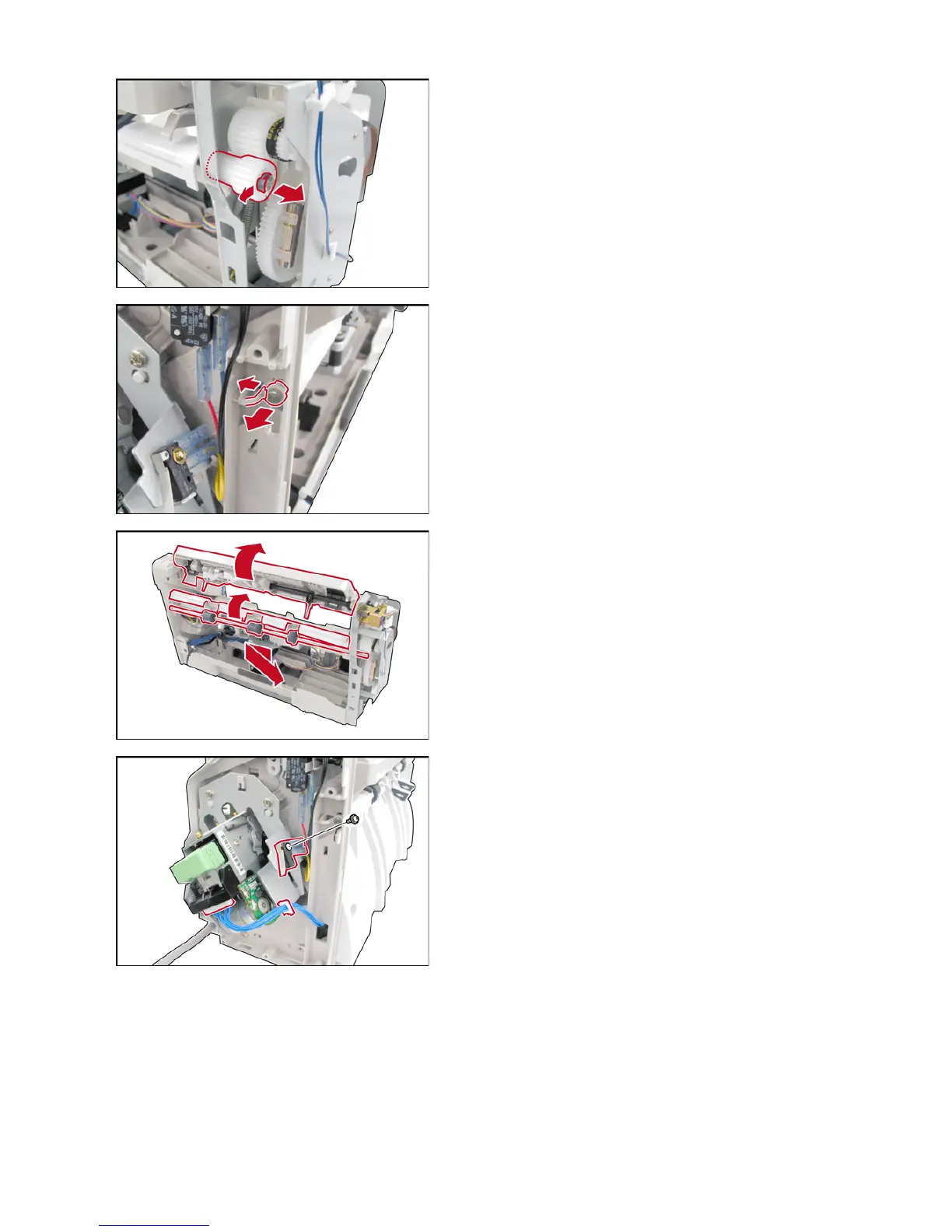

(36) Remove 1 Snap Ring (2734).
(37) Remove the Exit Roller Gear (2701).
(38) Remove the Bushing (2919).
(39) Lift up the Guide Base (2801) Assembly.
(40) Lift up the Paper Guide (2921).
(41) Remove the Exit Roller Assembly (2936) as
illustrated.
<Removing the Staple Unit>
(42) Remove 1 Screw (2943).
(43) Remove the Staple Safety Switch (2941).
(44) Release the Harness (2629) from the Harness
Clamp.
(45) Disconnect the Harness (2629).
