445
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

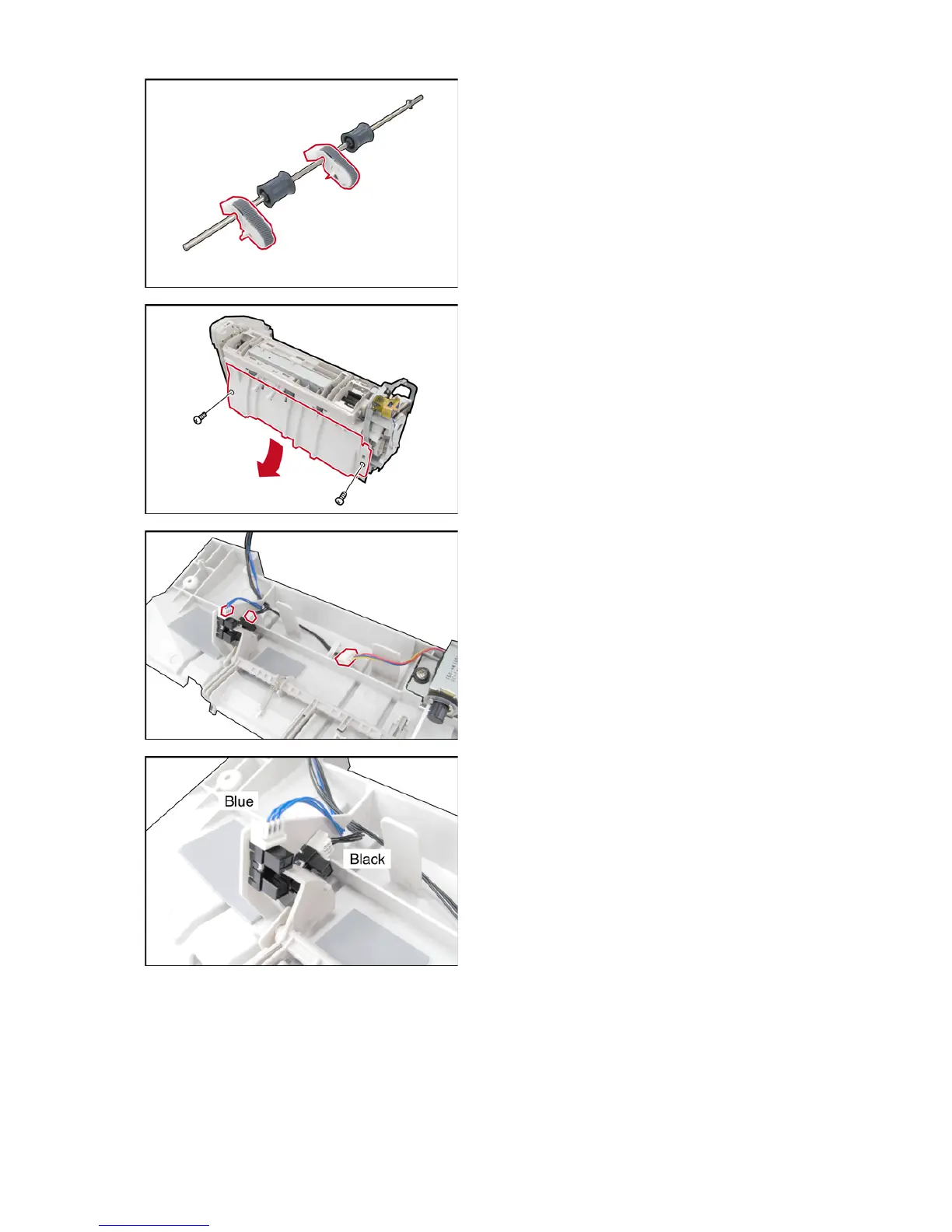

(32) Remove the Feed Arm Assembly (2913).
(33) Remove 1 Screw (2521) and 1 Screw (2633).
(34) Remove the Tray Guide Assembly (2611).
(35) Disconnect 3 Harnesses (2629).
Note:
When reinstalling, ensure that the Harnesses are
connected correctly as illustrated.
To Next Page
