8.30. Installing the Key Counter Harness Kit (DA-KH200)
8.30.1. Contents
Note:
The Key Counter is sold separately.
8.30.2. Installation
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
Qty. Description Part No. Remarks
1 KEY Harness DZFP000928 Longer
1 KC Harness FFPWC0392 Shorter
1 KC Bracket DZJA000786
1 Key Counter Cover DZMD000034
2 Screw DZPA000063
1 Installation Instructions DZSM000279 This document

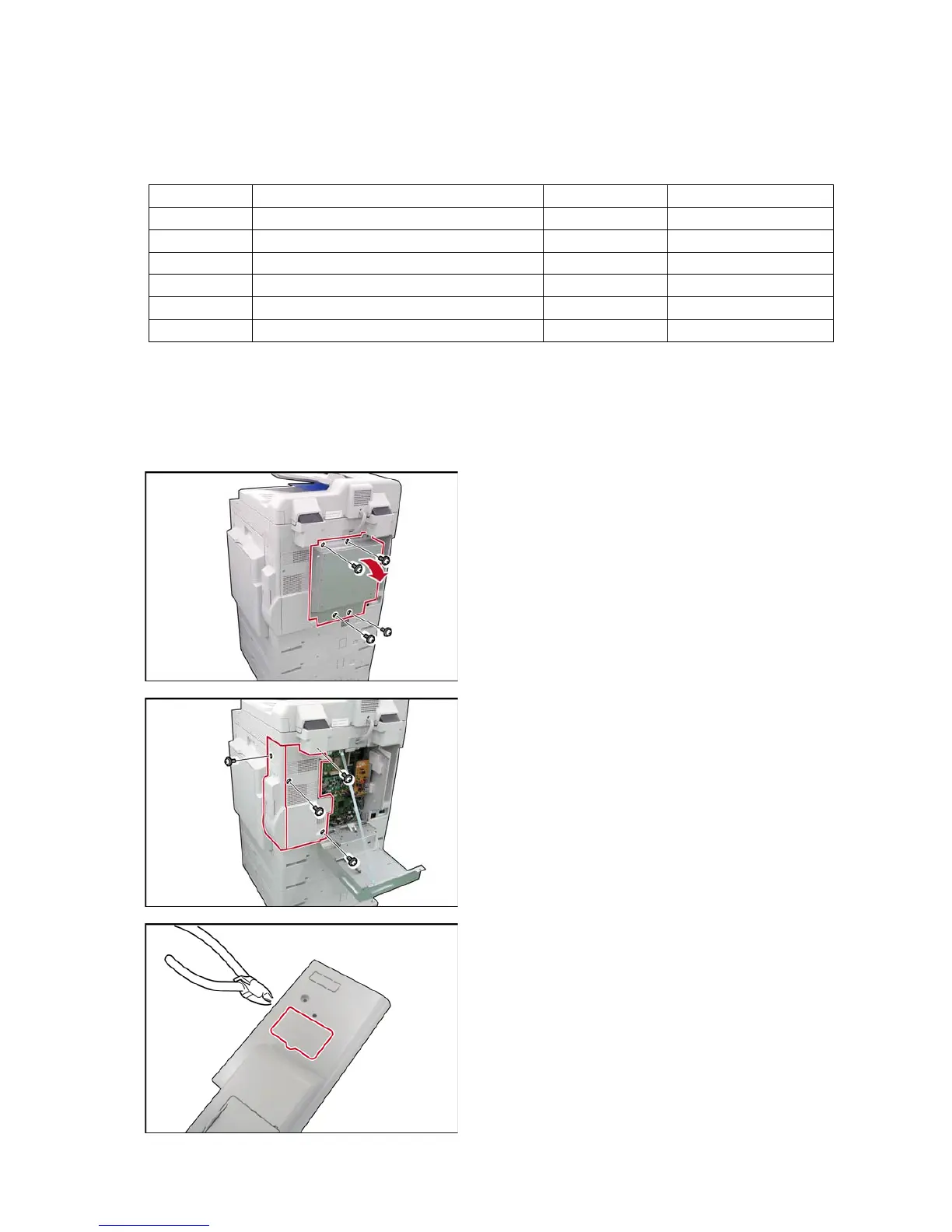

(1) Remove 4 Screws.
(2) Open the Rear Cover.
(3) Remove 4 Screws.
(4) Remove the Right Rear Cover and the Rear
Right Cover.
(5) Cut the Protective Tab on the Right Rear Cover.
