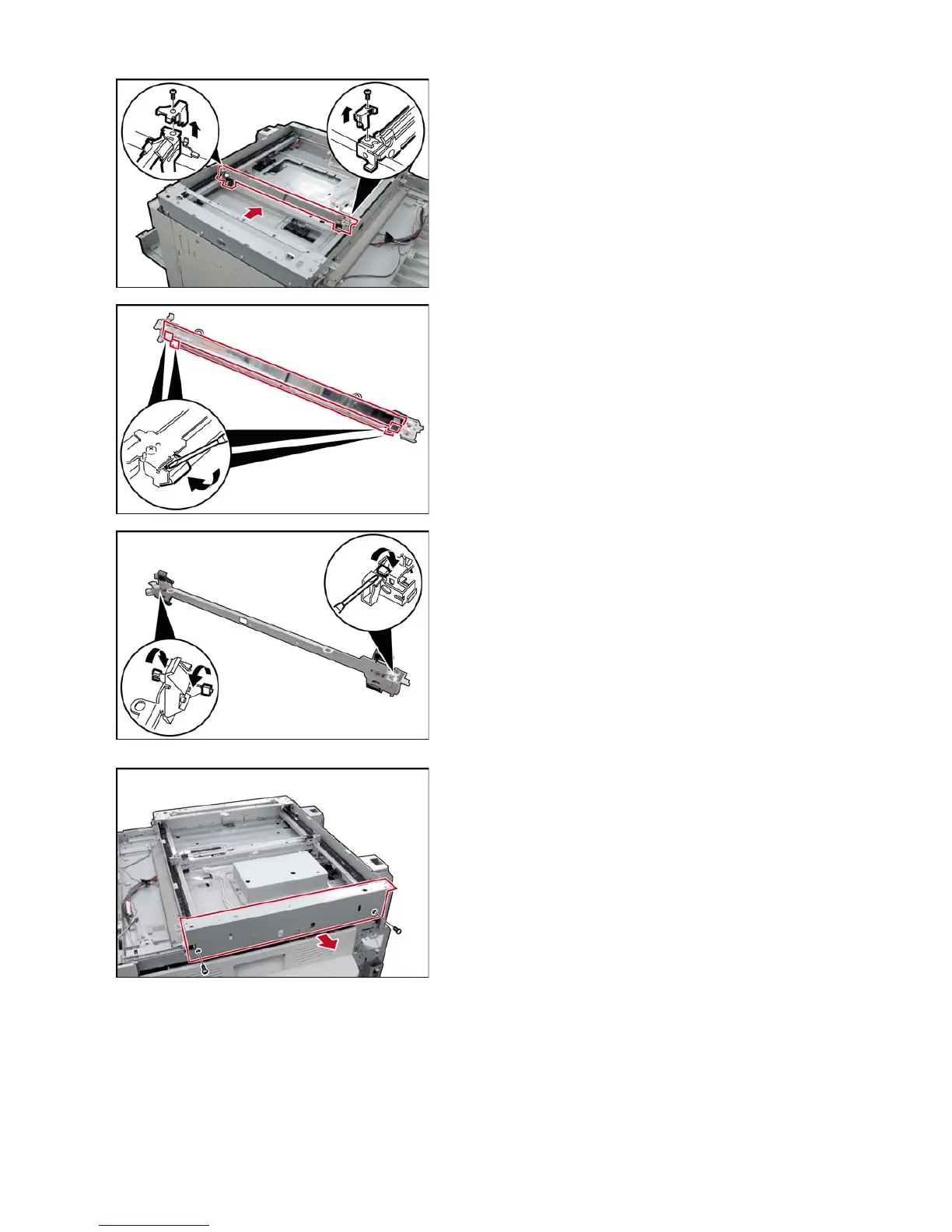

(56) Remove 2 Screws (18).
(57) Remove the Rear Mirror Belt Lock (238).
(58) Remove the Front Mirror Belt Lock (236).
(59) Remove the Mirror 2 Bracket (233) Assembly.
(60) Remove the 4 Mirror 2 Plate Springs (206).
(61) Remove the two Mirror 2 (265).
(62) Remove the 3 Sliders (211).
<Reinstalling the Lamp Base Assembly and the
Mirror 2 Bracket Assembly>
(1) Remove 2 Screws (19).
(2) Remove the Right Scanner Frame (242).
Note:
When reinstalling the Right Scanner Frame,
tighten the 2 Screws after reinstalling both sides of
the F/R Scanner Frame.
