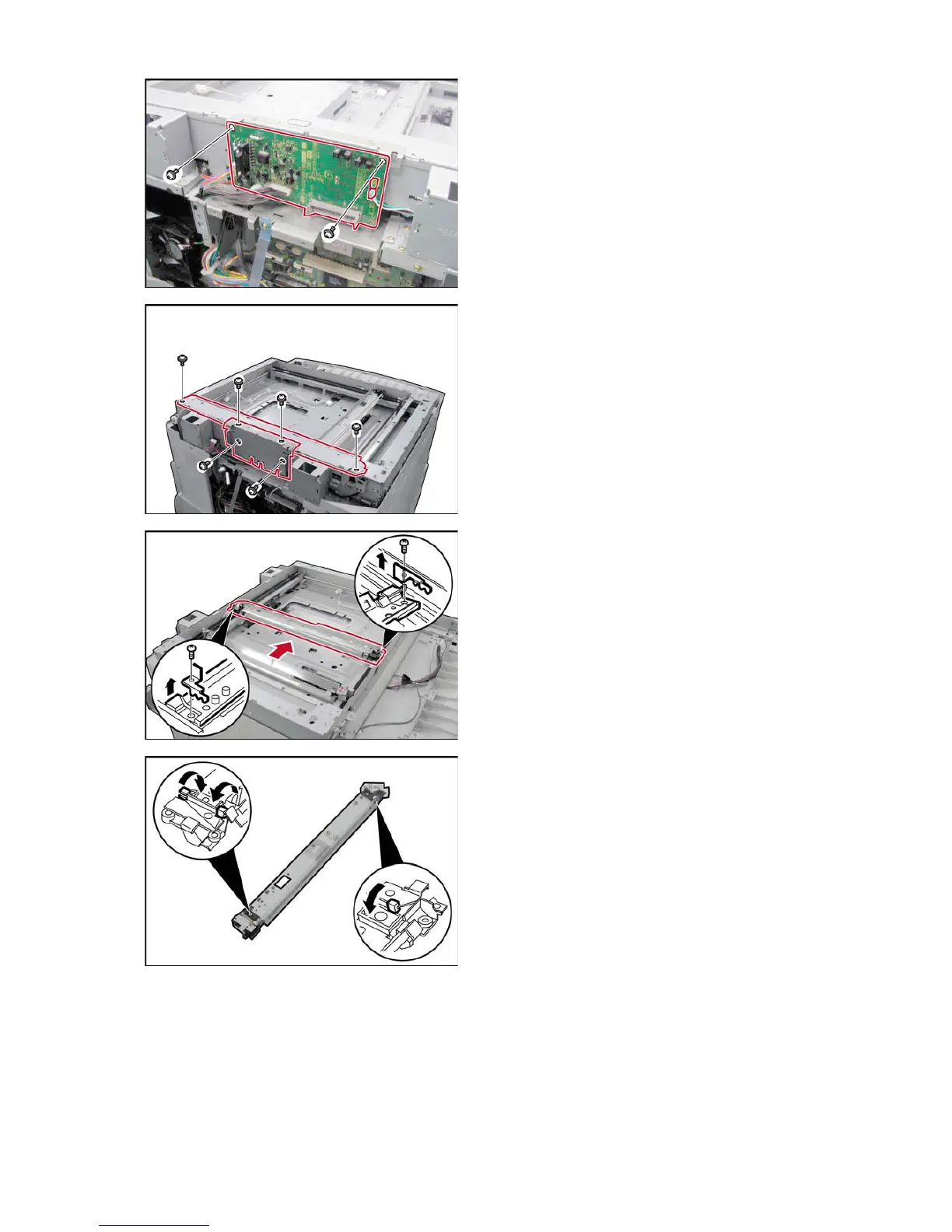

(47) Remove 2 Screws (19).
(48) Remove the SDR PC Board (1903).
(49) Remove 6 Screws (19).
(50) Remove the F/R Scanner Frame (240).
(51) Remove 2 Red Screws (D24).
(52) Remove the Rear Lamp Belt Lock (228).
(53) Remove the Front Lamp Belt Lock (227).
(54) Remove the Lamp Base Bracket (224)
Assembly.
(55) Remove the 3 Sliders (211).
