Panasonic DP-2330

50
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

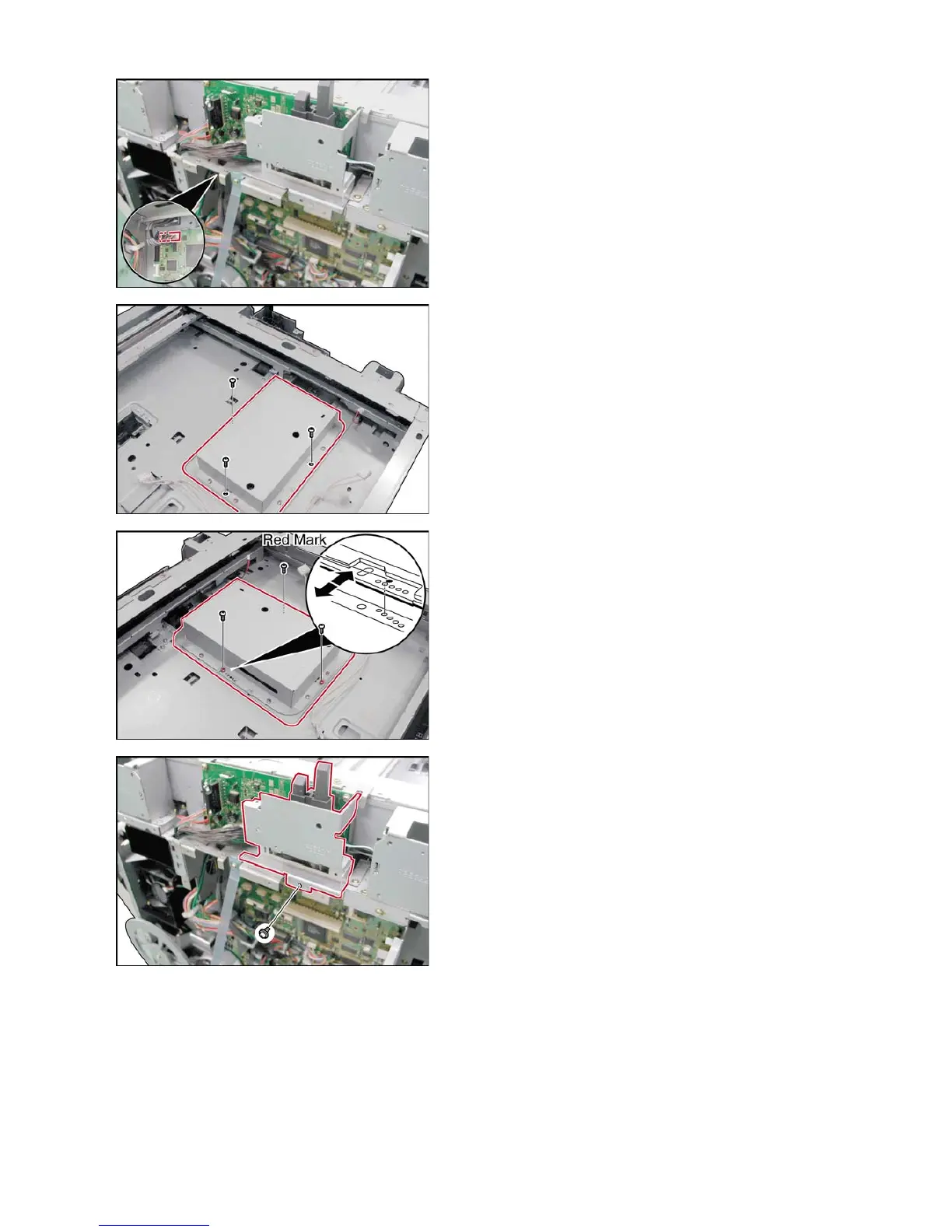

(41) Disconnect the Harness on the SC PC Board
(CN106).
(42) Release 2 Latch Clips and remove the Ferrite
Core.
(43) Remove 3 Red Screws (D24).
(44) Remove the CCD Assembly (207).
Note:
When reinstalling the CCD Assembly, align the
hole with the Red Mark on the CCD Assembly with
the hole on the Scanner Base Frame as illustrated
and secure it with 3 Red Screws.
(45) Remove 1 Screw (6P).
(46) Remove the CN Bracket (511) Assembly.
