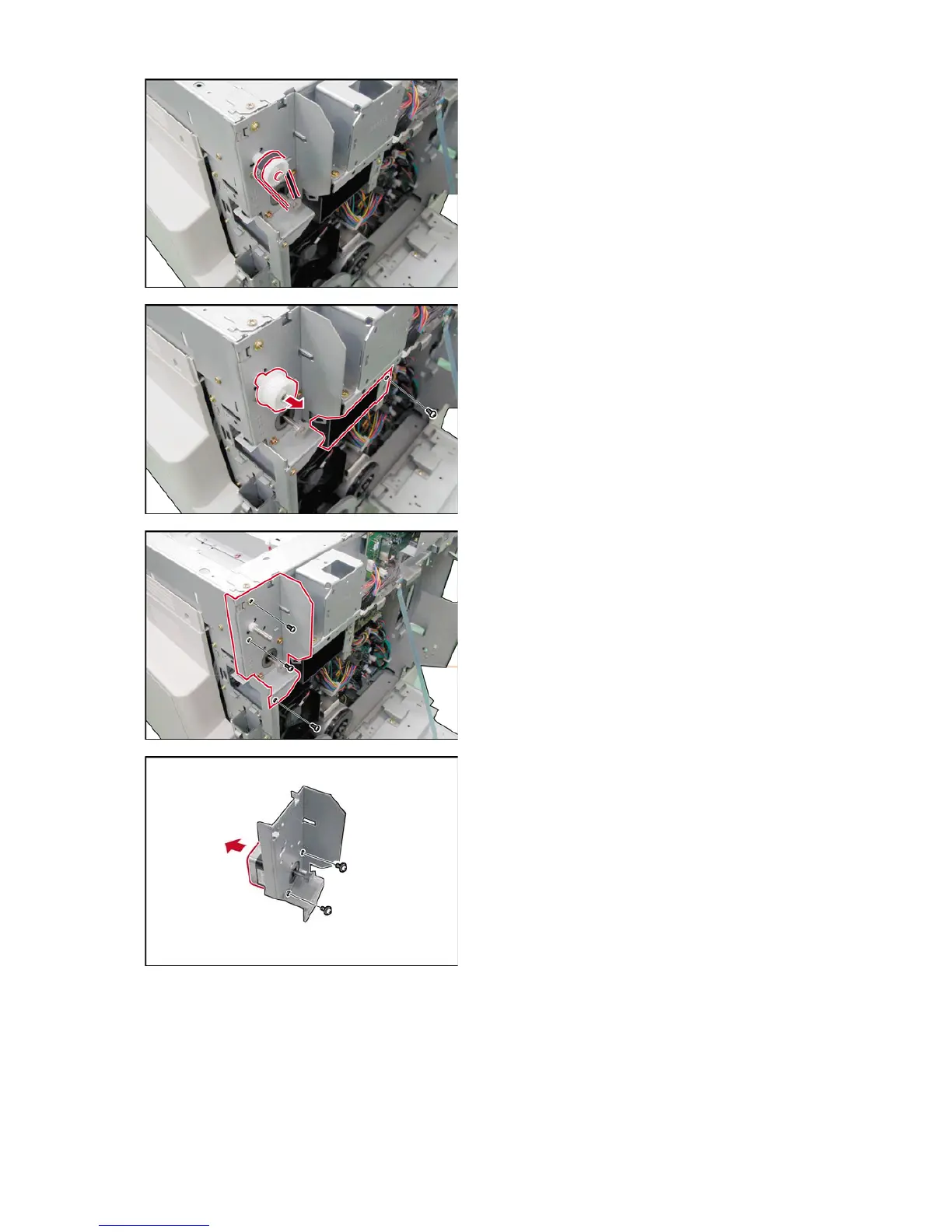

(31) Remove the E-Ring (5Y).
(32) Remove the Synchro Belt (208).
(33) Remove the MXL34 Pulley (217).
(34) Remove 1 Screw (6P).
(35) Remove the Fan (459).
(36) Disconnect the Harness on the Scanning Motor.
(37) Remove 3 Screws (19).
(38) Remove the Motor Bracket (249) Assembly.
Note:
When reinstalling the Motor Bracket, tighten the
upper screw first.
(39) Remove 2 Screws (36).
(40) Remove the Scanning Motor (201).
