2.2.9. Paper Feed Module

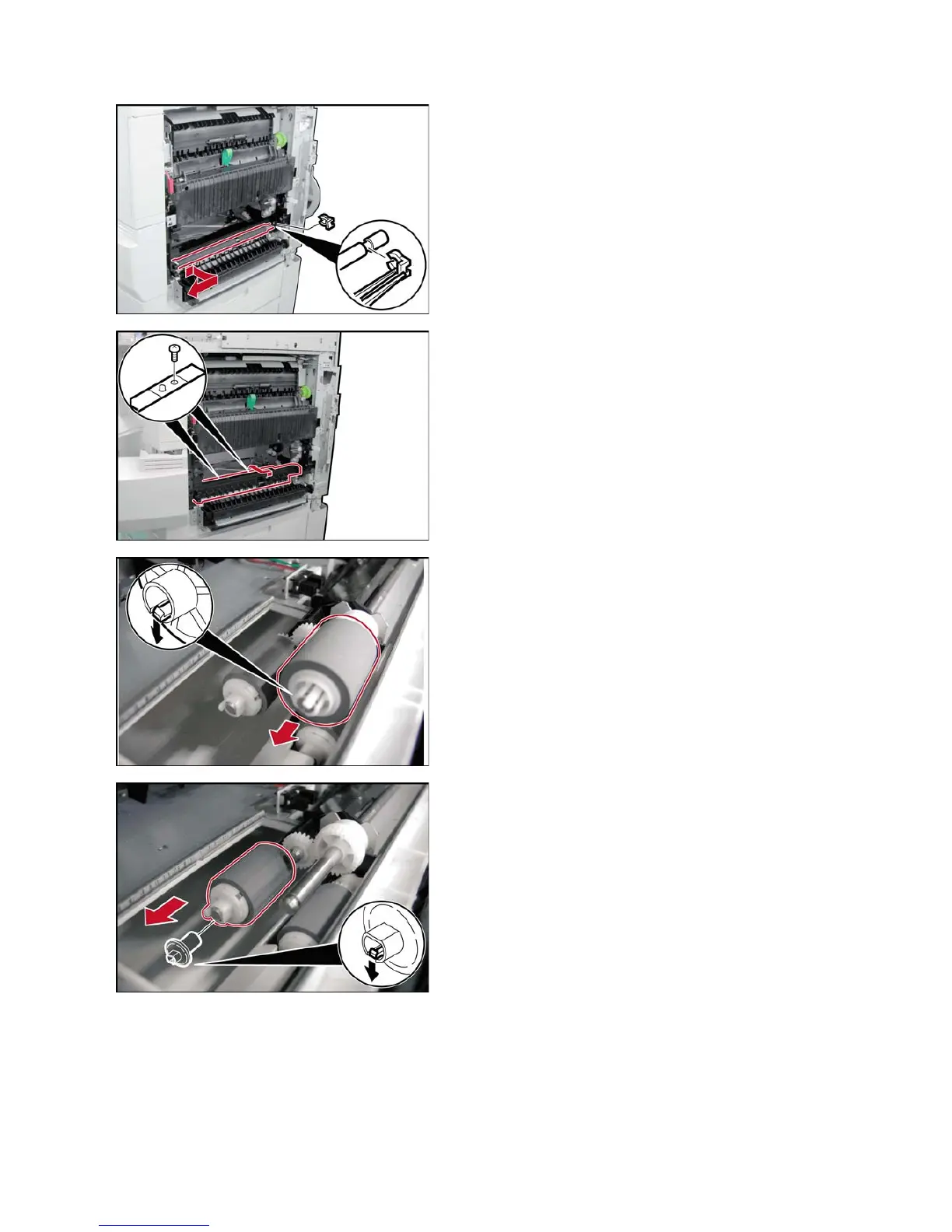

(1) Remove the Process Unit. (Refer to 2.2.4.)
(2) Remove the Clutch (1105). (Refer to 2.2.6.)
(3) Remove the Snap Ring (S9).
(4) Remove the Registration Roller (1121).
<Cleaning Registration Roller>
Clean the surface of the Registration Roller with a
soft cloth, saturated with isopropyl alcohol.
(5) Remove 2 Screws (19).
(6) Remove the Process Unit Guide (1104).
(7) Slide the 1st Paper Tray out.
(8) Remove the Paper Feed Roller (1144).
<Cleaning Paper Feed Roller>
Clean the surface of the Paper Feed Roller with a
soft cloth, saturated with isopropyl alcohol.
(9) Remove the Reverse Clutch (1132).
(10) Remove the C25 Gear Roller (1145).
<Cleaning C25 Gear Roller>
Clean the surface of the C25 Gear Roller with a
soft cloth, saturated with isopropyl alcohol.
