Panasonic DP-2330

439
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

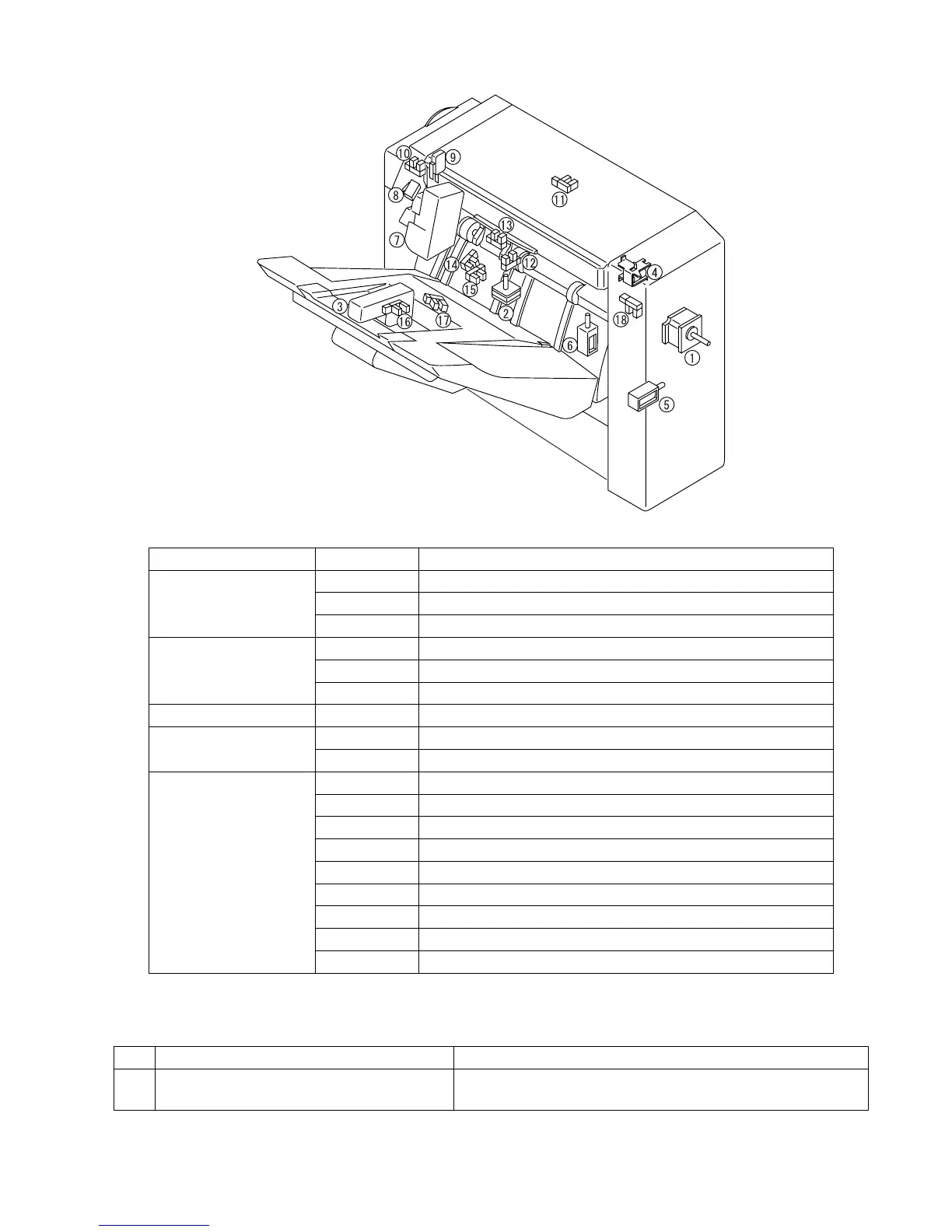

11.1.3. Electrical Components
11.1.4. Routine Maintenance by the User
Name Notation Description
Motor 1 Feed Motor
2 Alignment Motor
3 Stack Tray Elevation Motor
Solenoid 4 Paddle Solenoid
5 Large Gear Solenoid
6 Paper Detection Solenoid
Stapler Unit 7 Stapler Unit
Micro Switch 8 Staple Safety detection
9 Stapler Cover detection
Photo-interrupters 10 Upper Cover Open detection
11 Inlet Paper detection
12 Aligning Home Position Plate detection
13 Paper Exit detection
14 Stack Tray Paper Height detection
15 Paper Hold Lever detection
16 Stack Tray Upper Limit detection
17 Paper Full detection
18 Finisher Detachment detection
No. Item Timing
1 Staple Cartridge (Replacement) When prompted
(indicator on Host machine's Control Panel)
