323
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

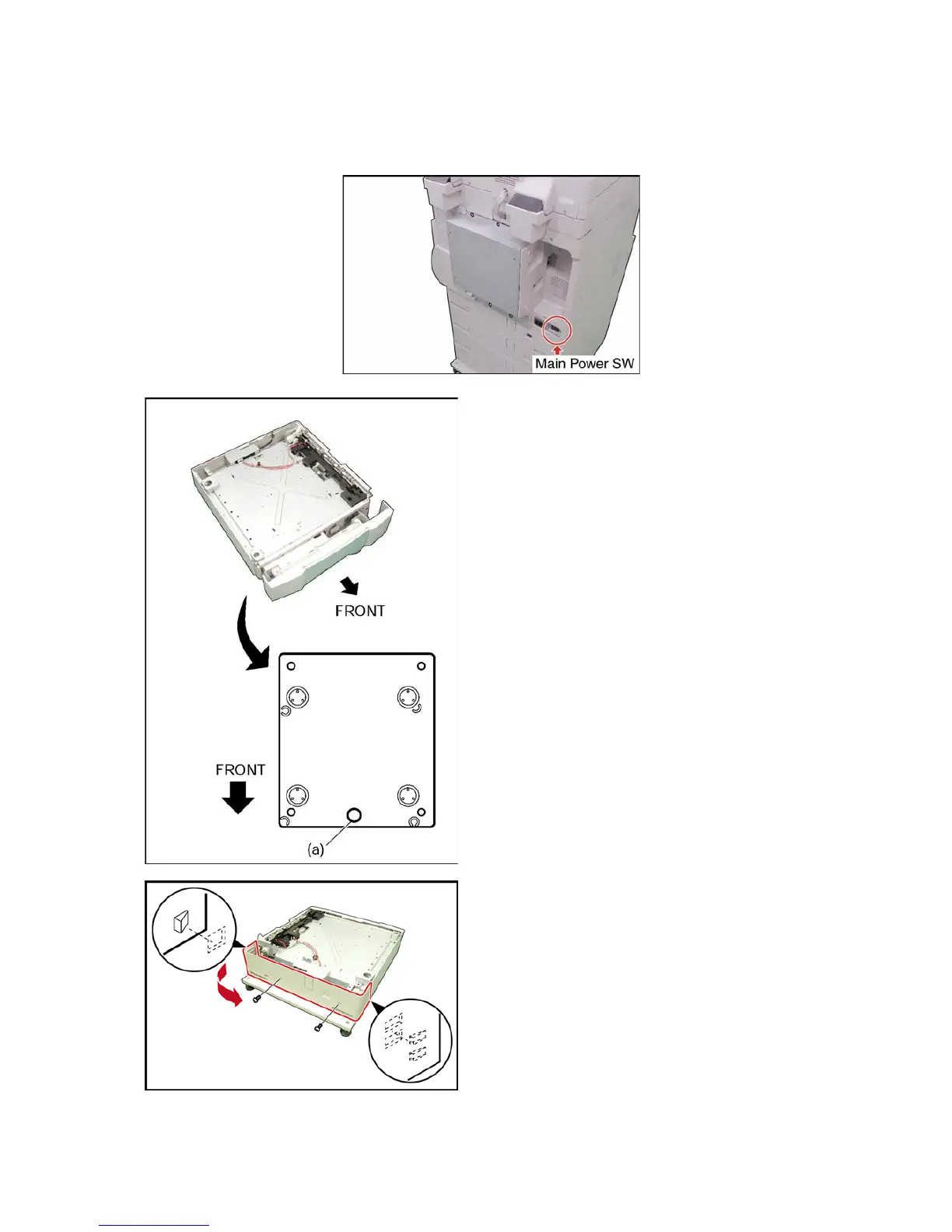

8.18.2. Installing the 3rd and 4th Paper Trays
CAUTION!
Turn the Power Switch on the Left Side and the Main Power Switch on the Back of the
machine to the OFF position, and then unplug the AC Power Cord before beginning
installation.
(1) Slide the 4th Paper Tray out of the unit.
(2) Place the 4th Paper Tray Unit on top of the
Caster.
Note:
The side with the silver seal, indicated with an
(a) in the illustration, is the Front side.
(3) Remove 2 Silver Screws.
(4) Remove the Lower Rear Cover.
To Next Page
